08IR60007 PR1115
SKU
TJY18060
Product Overview
08IR
Stainless Steel
Steel
Regular Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.07 |
| [IC] Inscribed Circle | 4.76 |
| [S] Insert Thickness | 2.38 |
| [PDX] Profile Distance | 0.80 |
| [PNA] Thread Angle | 60 |
| [D1] Hole Diameter | 2.30 |

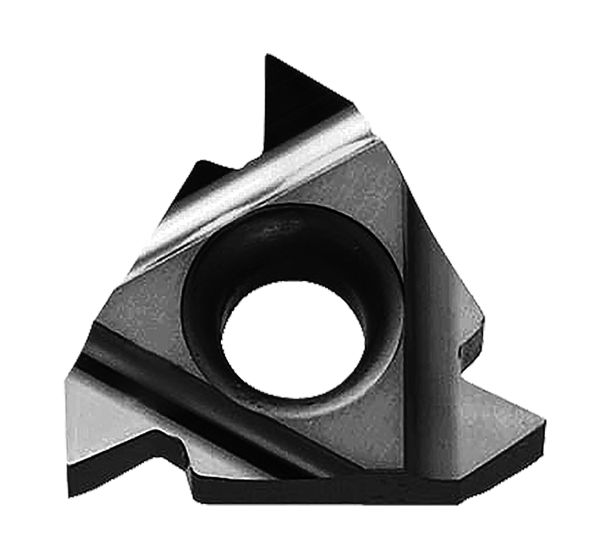

Threading Insert Carbide Coated
| Weight | 0.001000 |
|---|---|
| Application | Threading |
| Coating | PVD |
| Grade Manufacturers Designation | PR1115 |
| Thread Type | Internal |
| Primary Workpiece Material | Steel, Stainless Steel |
| Profile Distance | 0.80 |
| Thread Angle | 60 |
| Thread Profile | 13655 |
| Thread Profile | 9069,9065 |
| Tool Type | Indexable Inserts |
| Tool Material | Regular Grain Carbide |
| Thread Pitch | 60 |
| Coolant supply property | No |
| Number of Cutting Edges | 3 |
| Grooving | Parting off |
| Tool Style | 08IR |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | TiAlN |
| Usage Classification | Continuous |
| Insert Size | 08IR |
| Thread Form Type | Metric Unified |
