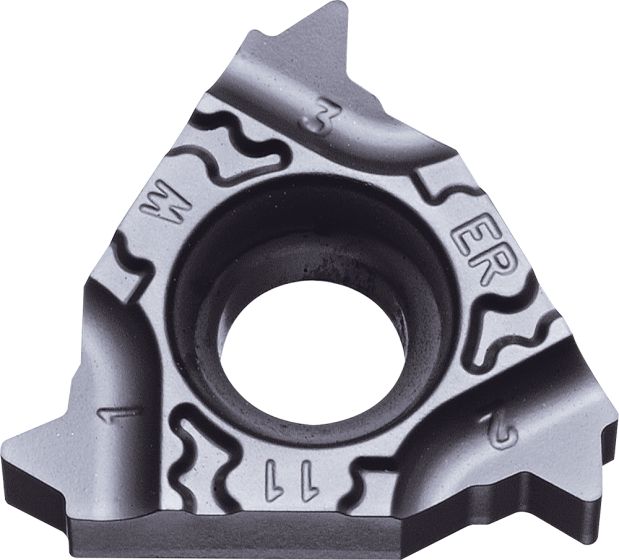

16ER11W-TF PR1515
SKU
TLG19003
Product Overview
16ER
Stainless Steel
Regular Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.29 |
| [IC] Inscribed Circle | 9.525 |
| [S] Insert Thickness | 3.68 |
| [PDX] Profile Distance | 1.60 |
| [PNA] Thread Angle | 55 |
| [D1] Hole Diameter | 4.00 |
Threading Insert Carbide
| Weight | 0.005000 |
|---|---|
| Application | Threading |
| Coating | PVD |
| Grade Manufacturers Designation | PR1515 |
| Thread Type | External |
| Primary Workpiece Material | Stainless Steel |
| Profile Distance | 1.60 |
| Thread Angle | 55 |
| Thread Profile | 13654 |
| Thread Profile | 9071 |
| Tool Type | Indexable Inserts |
| Tool Material | Regular Grain Carbide |
| Thread Pitch | 11 |
| Application Category | External Threading |
| Coolant supply property | No |
| Number of Cutting Edges | 3 |
| Grooving | Parting off |
| Tool Style | 16ER |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | MEGACOAT NANO |
| Usage Classification | Continuous |
| Insert Size | 16ER |
| Chip Breaker Manufacturers Designation | TF |
| Thread Form Type | Witworth |
