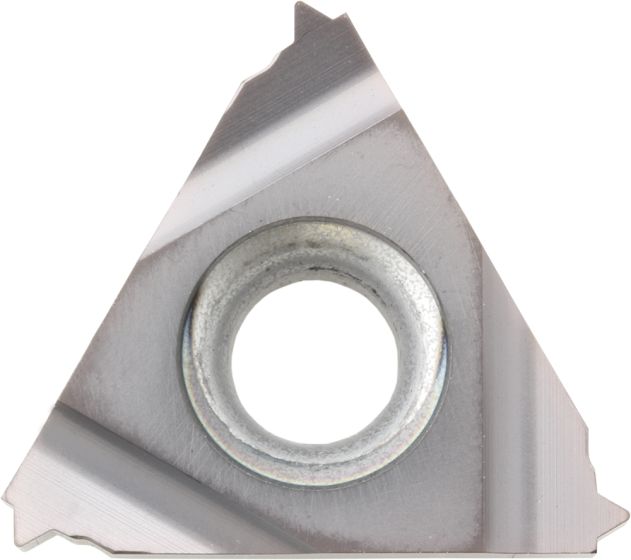

16IR150ISO GW15
SKU
TWF18323
Product Overview
16IR
Heat Resistant Materials
Regular Grain Carbide
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.11 |
| [IC] Inscribed Circle | 9.525 |
| [S] Insert Thickness | 3.68 |
| [PDX] Profile Distance | 1.10 |
| [PNA] Thread Angle | 60 |
| [D1] Hole Diameter | 4.00 |
Threading Insert Carbide
| Weight | 0.005000 |
|---|---|
| Application | Threading |
| Coating | UNCOATED |
| Grade Manufacturers Designation | GW15 |
| Thread Type | Internal |
| Primary Workpiece Material | Heat Resistant Materials |
| Profile Distance | 1.10 |
| Thread Angle | 60 |
| Thread Profile | 13654 |
| Thread Profile | 9065 |
| Tool Type | Indexable Inserts |
| Tool Material | Regular Grain Carbide |
| Thread Pitch | 1.50 |
| Coolant supply property | No |
| Number of Cutting Edges | 3 |
| Grooving | Parting off |
| Tool Style | 16IR |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | WC/Co |
| Usage Classification | Continuous |
| Insert Size | 16IR |
| Thread Form Type | Metric |
