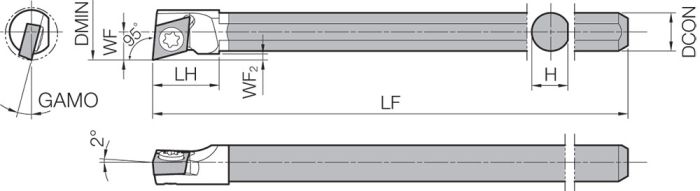

| Specifications | |
|---|---|
| [RE] Corner Radius | 0.03 |
| [DCON] Connection Diameter | 04.00 |
| [LH] Head Length | 07.00 |
| [WF] Cutting Edge Distance | 02.95 |
| [DMIN] Minimum Bore Diameter | 05.50 |
| [WF2] Cutting Edge Distance Secondary | 0.65 |
| [LF] Functional Length | 91.00 |
| [H] Shank Height | 3.80 |
Indexable Turning Holders
| Weight | 0.039000 |
|---|---|
| Application | ISO Turning |
| Tool Type | Indexable Holders |
| Cutting Edge Distance Secondary | 0.65 |
| Application Category | Boring, Internal Facing |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Rake Angle Axial (Degree) | 2 |
| Grooving | Parting off |
| Rake Angle Radial (Degree) | -15 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 95 |
| Brand | Kyocera |
| Families | Boring Bars |
| Tool Entering Angle (Degree) | 95 |
| Shank Height | 3.80 |
| Insert Size | JC-0301 |
| ISO Turning | Int. Pos. 95° Approach Boring – Facing |
