C8-22-50
SKU
308005-22
Product Overview
C8
Capto
Face Miling
Price Hidden
In stock
| Specifications | |
|---|---|
| [D1] Diameter | 22 |
| [D2] Cutting Diameter Minimum | 48 |
| [D2] [D2] Diameter | 48 |
| [M] Metric Size | M10 |
| [A] A | 50 |

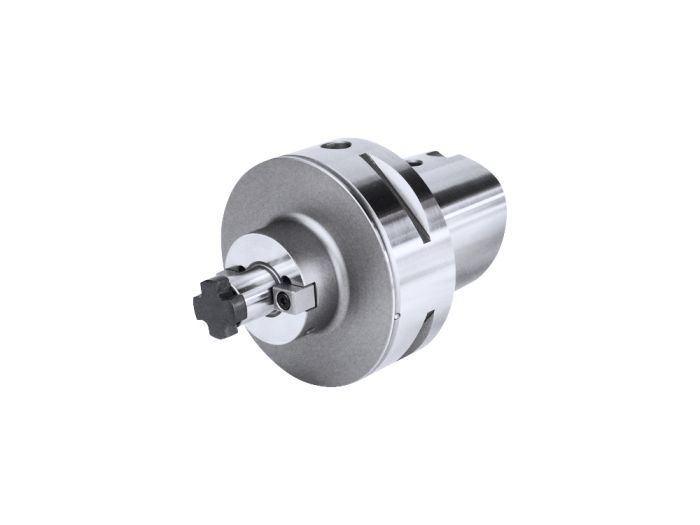

Shell mill holder - Corum - cool tool
Detail 1 Application
For adapting shell mills with coolant through to the cutting edges.
Detail 2 Technical Design
With extended flange. Runout of outer taper to D1 < 0,006 mm.
| Weight | 2.190000 |
|---|---|
| Application | Milling |
| Clamping System | Shell mill holder - Corum - cool tool |
| Diameter | 22 |
| Cutting Diameter Minimum | 48 |
| [D1] Diameter | 22 |
| [D2] Diameter | 48 |
| Shank Size | Corum 8 ISO 26623 |
| Type Accessories | Corum 8 |
| Version | Short |
| Connection Code | Capto |
| Length | 19 |
| Type of Taper | PSC ISO 26610 |
| Coolant supply property | No |
| Grooving | Parting off |
| Brand | Schussler |
| Attribute set | Spindle Tooling |
