C8-32-80
SKU
308004-10
Product Overview
C8
Capto
Face Miling
Price Hidden
In stock
| Specifications | |
|---|---|

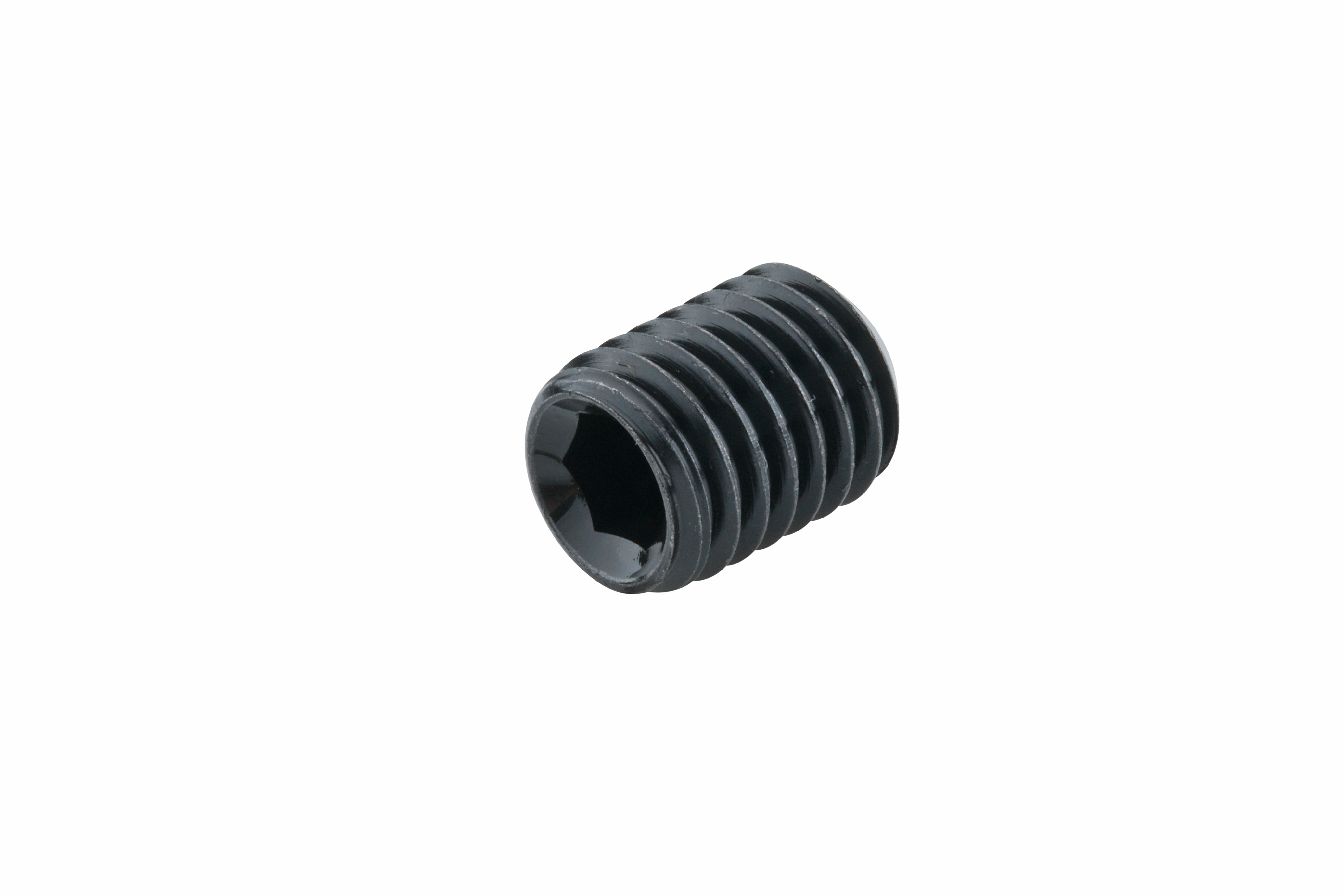

| [M1] [M1] Mertic | M20x2 |
| [M2] [M2] Mertic | - |
| [D1] Diameter | 32 |
| [D2] Cutting Diameter Minimum | 72 |
| [D2] [D2] Diameter | 72 |
| [A] A | 80 |

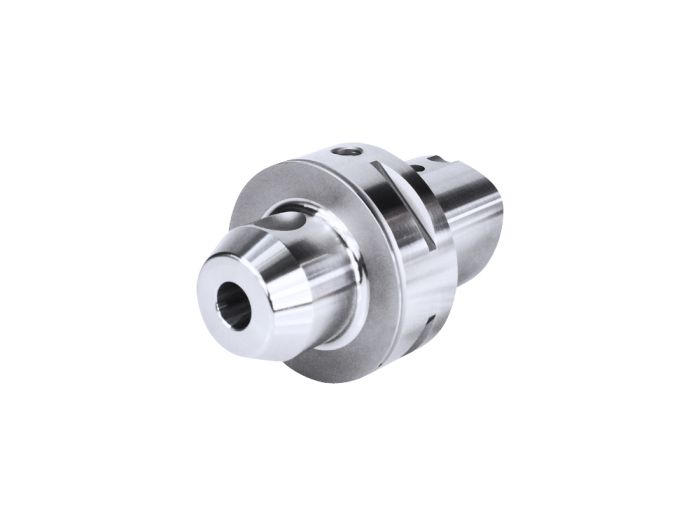

End Mill holder Weldon - Corum
Detail 1 Application
For clamping tools with cylindrical shank according to DIN 1835B/6359HB.
Detail 2 Technical Design
Runout of outer taper to D1 < 0,003 mm. Tolerance of bore H4 (more accurate as DIN).
| Weight | 2.865000 |
|---|---|
| Application | Milling |
| Clamping System | End Mill holder Weldon - Corum |
| Diameter | 32 |
| Cutting Diameter Minimum | 72 |
| [D1] Diameter | 32 |
| [D2] Diameter | 72 |
| [M1] Mertic | M20x2 |
| [M2] Mertic | - |
| Shank Size | Corum 8 ISO 26623 |
| Type Accessories | Corum 8 |
| Version | Short |
| Connection Code | Capto |
| Type of Taper | PSC ISO 26623 |
| Coolant supply property | No |
| Grooving | Parting off |
| Brand | Schussler |
| Attribute set | Spindle Tooling |
