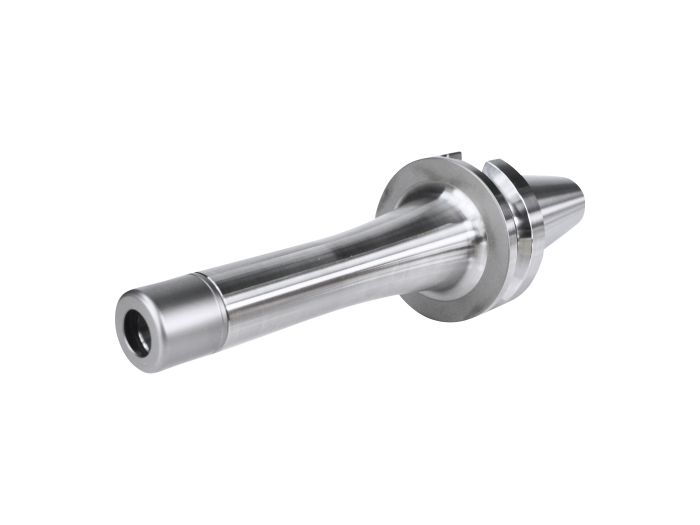

BT40-ER16-100
SKU
754034-32
Product Overview
BT40
BT
Price Hidden
In stock
| Specifications | |
|---|---|
| [L] Cutting edge length | 100 |
| [ER] ER | 16 |
| [M] Metric Size | M11x1 |
| [A] A | 100 |
High-Precision ER Collet Chuck "Hawk Eye®" - Mini
Detail 1 Application
For clamping tools with cylindrical shank in collets ER.
Detail 2 Technical Design
Due to high precision taper tolerances of the ER-Inner taper and the collet taper max. runout of < 3µ at 2,5 X D, subject the usage of our HP 2µ ER collets.
| Weight | 0.995000 |
|---|---|
| Clamping System | High-Precision ER Collet Chuck "Hawk Eye®" - Mini |
| ER (Size) | 16 |
| Shank Size | BT 40 ISO 7388-2 JD/JF |
| Type Accessories | BT 40 |
| Version | Short |
| Connection Code | BT |
| Type of Taper | BT ISO 7388-2 JD/F |
| Coolant supply property | No |
| Brand | Schussler |
| Attribute set | Spindle Tooling |
