SK40-32-60
SKU
714006-04
Product Overview
SK40
DIN69871
Face Miling
Price Hidden
In stock
| Specifications | |
|---|---|
| [D1] Diameter | 32 |
| [D2] Cutting Diameter Minimum | 58 |
| [D2] [D2] Diameter | 58 |
| [M] Metric Size | M16 |
| [A] A | 60 |

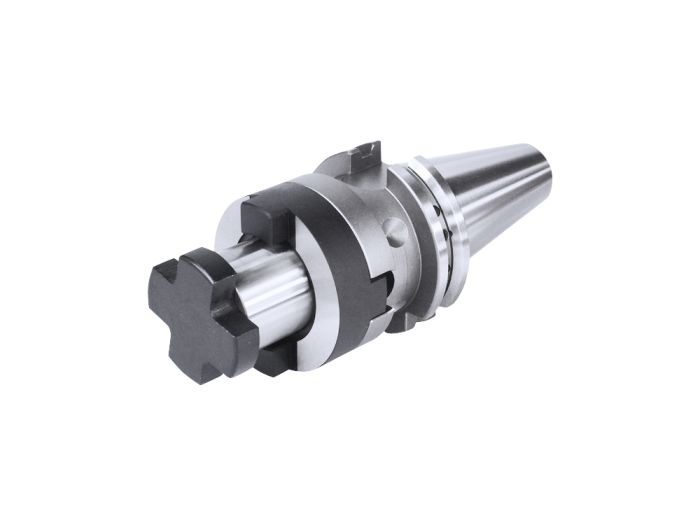

Combi shell mill holder
Detail 1 Application
For adapting shell mills with transverse and longitudinal groove.
Detail 2 Technical Design
Runout of outer taper to D1 < 0,006 mm.
| Weight | 1.735000 |
|---|---|
| Application | Milling |
| Clamping System | Combi shell mill holder |
| Diameter | 32 |
| Cutting Diameter Minimum | 58 |
| [D1] Diameter | 32 |
| [D2] Diameter | 58 |
| Shank Size | SK 40 ISO 7388-1 AD/F |
| Type Accessories | SK 40 |
| Version | Short |
| Connection Code | DIN69871 |
| Length | 24 |
| Length | 38 |
| Type of Taper | Steep Taper ISO 7388-1 AD/AF |
| Coolant supply property | No |
| Grooving | Parting off |
| Brand | Schussler |
| Attribute set | Spindle Tooling |
