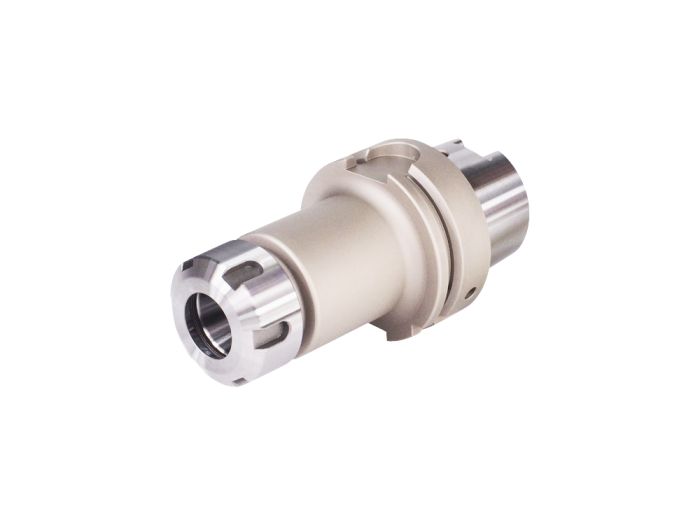

HSK-A63-ER40-120
SKU
6063028-04
Product Overview
HSK-A63
HSK
Price Hidden
In stock
| Specifications | |
|---|---|
| [L] Cutting edge length | 95 |
| [ER] ER | 40 |
| [M] Metric Size | M28x1,5 |
| [A] A | 120 |
Collet chuck ER - corrosion protected
Detail 1 Application
For clamping tools with cylindrical shank in collets ER.
Detail 2 Technical Design
The entire front area of the tool holder is corrosion resistant. Runout of outer taper to inner taper < 0,003 mm. Due to adjusted taper tolerances of the ER-Inner taper and the collet taper max. runout of < 8 µ at 2,5 X D.
| Weight | 1.820000 |
|---|---|
| Clamping System | Collet chuck ER - corrosion protected |
| ER (Size) | 40 |
| Shank Size | HSK-A 63 |
| Type Accessories | HSK-A 63 |
| Version | Short |
| Connection Code | HSK |
| Type of Taper | Hollow Shank Taper DIN 69893 |
| Coolant supply property | No |
| Brand | Schussler |
| Attribute set | Spindle Tooling |
