HSK-A100-18-100
SKU
6100041-07
Product Overview
HSK-A100
HSK
Price Hidden
In stock
| Specifications | |
|---|---|
| [L] Cutting edge length | 51 |
| [M1] [M1] Mertic | M14 |
| [M2] [M2] Mertic | - |
| [D1] Diameter | 18 |
| [D2] Cutting Diameter Minimum | 50 |
| [D2] [D2] Diameter | 50 |
| [A] A | 100 |

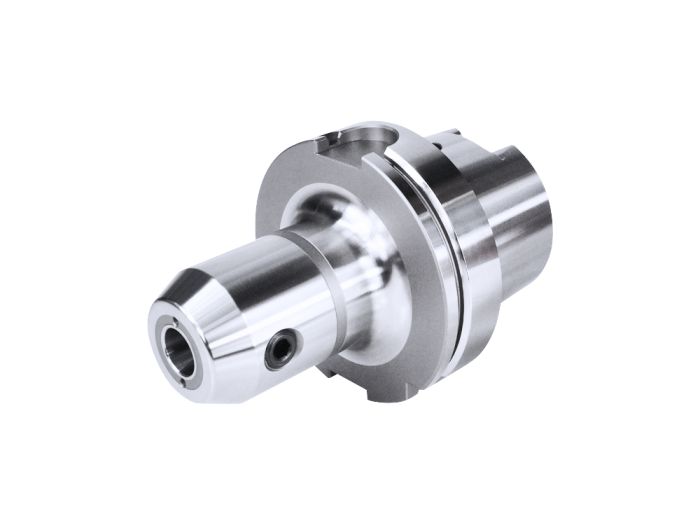

End Mill holder Weldon - cool tool
Detail 1 Application
For clamping tools with cylindrical shank according to DIN 1835B/6359HB.
Detail 2 Technical Design
Two holes in the toolholder lead the coolant directly to the cutting edge. Runout of outer taper to D1 < 0,003 mm. Tolerance of bore H4 (more accurate as DIN)
| Weight | 3.030000 |
|---|---|
| Clamping System | End Mill holder Weldon - cool tool |
| Diameter | 18 |
| Cutting Diameter Minimum | 50 |
| [D1] Diameter | 18 |
| [D2] Diameter | 50 |
| [M1] Mertic | M14 |
| [M2] Mertic | - |
| Shank Size | HSK-A 100 |
| Type Accessories | HSK-A 100 |
| Version | Short |
| Connection Code | HSK |
| Type of Taper | Hollow Shank Taper DIN 69893 |
| Coolant supply property | No |
| Brand | Schussler |
| Attribute set | Spindle Tooling |
