BT40-8-90
SKU
754021-02
Product Overview
BT40
BT
Price Hidden
In stock
| Specifications | |
|---|---|
| [L] Cutting edge length | 37 |
| [D1] Diameter | 8 |
| [D2] Cutting Diameter Minimum | 21 |
| [D2] [D2] Diameter | 21 |
| [D3] [D3] Diameter | 27 |
| [M] Metric Size | M6 |
| [A] A | 90 |

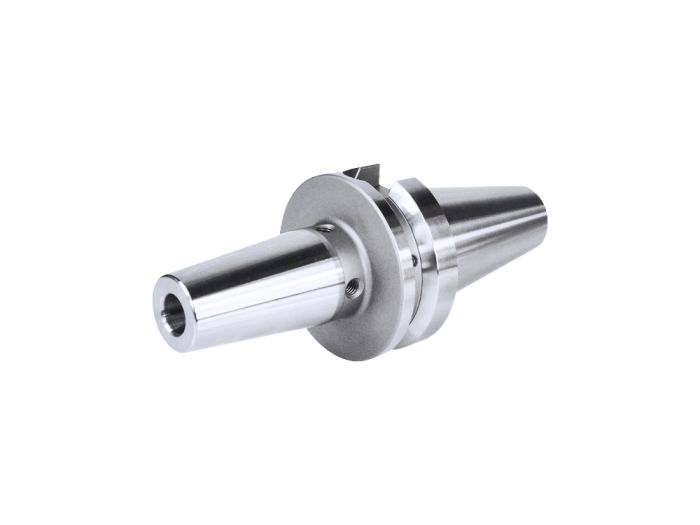

Shrink fit holder 4.5°
Detail 1 Application
For clamping tools with cylindrical shank of solid carbide or HSS, tol. h6.
Detail 2 Technical Design
Made of special heat resistant steel. Suitable for inductive shrinking unit. With four additional threads for supplementary fine balancing. Runout of outer taper to D1 < 0,003 mm.
| Weight | 1.190000 |
|---|---|
| Clamping System | Shrink fit holder 4.5° |
| Diameter | 8 |
| Cutting Diameter Minimum | 21 |
| D3 | 27 |
| [D1] Diameter | 8 |
| [D2] Diameter | 21 |
| [D3] Diameter | 27 |
| Shank Size | BT 40 ISO 7388-2 JD/JF |
| Type Accessories | BT 40 |
| [V] | 10 |
| Version | Short |
| Connection Code | BT |
| Type of Taper | BT ISO 7388-2 JD/F |
| Coolant supply property | No |
| Brand | Schussler |
| Attribute set | Spindle Tooling |
