BT40-16-100
SKU
754004-36
Product Overview
BT40
BT
Face Miling
Price Hidden
In stock
| Specifications | |
|---|---|
| [L] Cutting edge length | 51 |
| [M1] [M1] Mertic | M14 |
| [M2] [M2] Mertic | - |
| [D1] Diameter | 16 |
| [D2] Cutting Diameter Minimum | 48 |
| [D2] [D2] Diameter | 48 |
| [A] A | 100 |

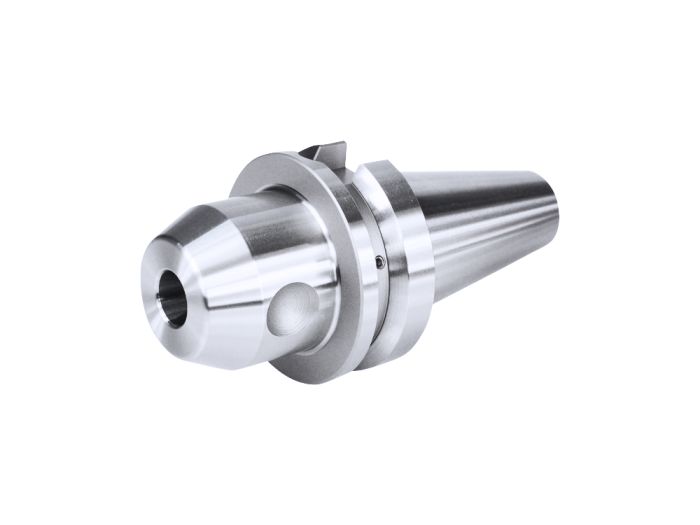

End Mill holder Weldon
Detail 1 Application
For clamping tools with cylindrical shank according to DIN 1835B/6359HB.
Detail 2 Technical Design
Runout of outer taper to D1 < 0,003 mm. Tolerance of bore H4 (more accurate as DIN).
| Weight | 1.850000 |
|---|---|
| Application | Milling |
| Clamping System | End Mill holder Weldon |
| Diameter | 16 |
| Cutting Diameter Minimum | 48 |
| [D1] Diameter | 16 |
| [D2] Diameter | 48 |
| [M1] Mertic | M14 |
| [M2] Mertic | - |
| Shank Size | BT 40 ISO 7388-2 JD/JF |
| Type Accessories | BT 40 |
| Version | Long |
| Connection Code | BT |
| Type of Taper | BT ISO 7388-2 JD/F |
| Coolant supply property | No |
| Grooving | Parting off |
| Brand | Schussler |
| Attribute set | Spindle Tooling |
