HSK-A100-8-85
SKU
6100048-028
Product Overview
HSK-A100
HSK
Face Miling
Price Hidden
In stock
| Specifications | |
|---|---|
| [L] Cutting edge length | 35 |
| [M1] [M1] Mertic | M8 |
| [M2] [M2] Mertic | - |
| [D1] Diameter | 8 |
| [D2] Cutting Diameter Minimum | 28 |
| [D2] [D2] Diameter | 28 |
| [A] A | 85 |

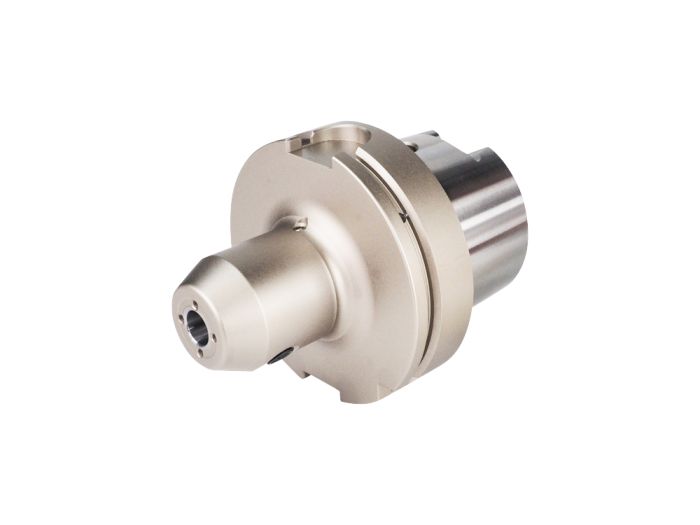

End Mill holder Weldon - 4x cool tool - corrosion protected
Detail 1 Application
For clamping tools with cylindrical shank according to DIN 1835B/6359HB.
Detail 2 Technical Design
The entire front area of the tool holder is corrosion resistant. Runout of outer taper to inner taper < 0,003 mm. Tolerance of bore H4 (more accurate as DIN). Four holes in the toolholder lead the coolant directly to the cutting edge.
| Weight | 2.370000 |
|---|---|
| Application | Milling |
| Clamping System | End Mill holder Weldon - 4x cool tool - corrosion protected |
| Diameter | 8 |
| Cutting Diameter Minimum | 28 |
| [D1] Diameter | 8 |
| [D2] Diameter | 28 |
| [M1] Mertic | M8 |
| [M2] Mertic | - |
| Shank Size | HSK-A 100 |
| Type Accessories | HSK-A 100 |
| Version | Short |
| Connection Code | HSK |
| Type of Taper | Hollow Shank Taper DIN 69893 |
| Coolant supply property | No |
| Grooving | Parting off |
| Brand | Schussler |
| Attribute set | Spindle Tooling |
