HSK-A100-25-130
SKU
610021-59
Product Overview
HSK-A100
HSK
Price Hidden
In stock
| Specifications | |
|---|---|
| [L] Cutting edge length | 59 |
| [D1] Diameter | 25 |
| [D2] Cutting Diameter Minimum | 44 |
| [D2] [D2] Diameter | 44 |
| [D3] [D3] Diameter | 53 |
| [M] Metric Size | M16x1 |
| [A] A | 130 |

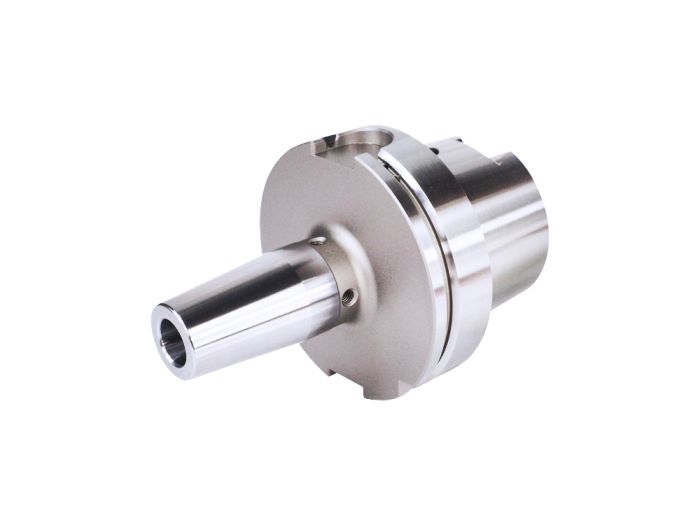

Shrink fit holder 4.5°
Detail 1 Application
For clamping tools with cylindrical shank of solid carbide or HSS, tol. h6.
Detail 2 Technical Design
Made of special heat resistant steel. Suitable for inductive shrinking unit. With four additional threads for supplementary fine balancing. Runout of outer taper to D1 < 0,003 mm.
| Weight | 3.450000 |
|---|---|
| Clamping System | Shrink fit holder 4.5° |
| Diameter | 25 |
| Cutting Diameter Minimum | 44 |
| D3 | 53 |
| [D1] Diameter | 25 |
| [D2] Diameter | 44 |
| [D3] Diameter | 53 |
| Shank Size | HSK-A 100 |
| Type Accessories | HSK-A 100 |
| [V] | 10 |
| Version | Long |
| Connection Code | HSK |
| Type of Taper | Hollow Shank Taper DIN 69893 |
| Coolant supply property | No |
| Brand | Schussler |
| Attribute set | Spindle Tooling |
