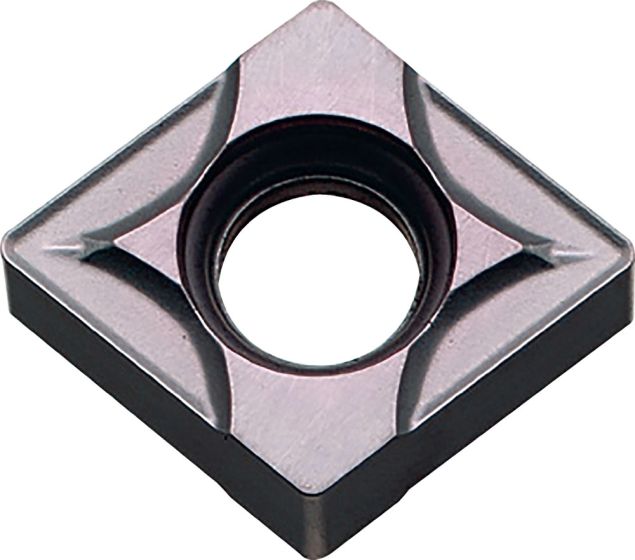

CNMU070302E-GK PR1535
SKU
TLC01667
Product Overview
CNMU
Heat Resistant Materials
Stainless Steel
Regular Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.20 |
| [IC] Inscribed Circle | 7.50 |
| [S] Insert Thickness | 3.18 |
| [AN] Clearance Angle Major | 0° |
| [D1] Hole Diameter | 3.60 |
Turning Insert Negative Carbide Coated
| Weight | 0.003000 |
|---|---|
| Application | ISO Turning |
| Coating | PVD |
| Chipbreaker Size | Medium-Roughing |
| Grade Manufacturers Designation | PR1535 |
| Primary Workpiece Material | Stainless Steel, Heat Resistant Materials |
| Tool Type | Indexable Inserts |
| Tool Material | Regular Grain Carbide |
| Application Category | External Turning, External Facing |
| Insert Side Count | Negative |
| Coolant supply property | No |
| Number of Cutting Edges | 4 |
| Grooving | Parting off |
| Tool Style | CNMU |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | MEGACOAT NANO |
| Cutting Edge Style | Honed Edge |
| Usage Classification | Continuous to Light Interruption |
| Insert Size | CN-0703 |
| Chip Breaker Manufacturers Designation | E-GK |
