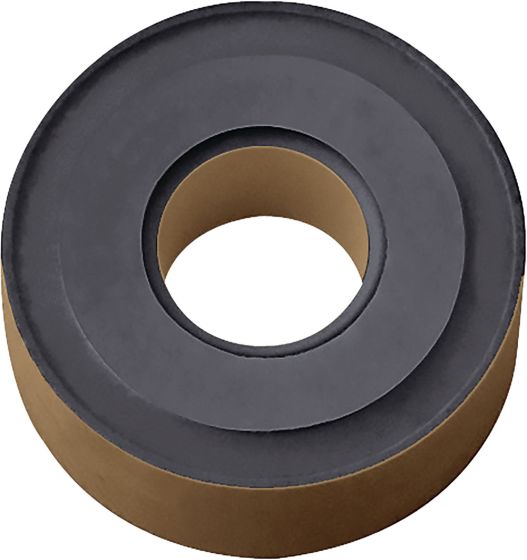

RNMG150600 CA115P
SKU
TML00177
Product Overview
RNMG
Steel
Regular Grain Carbide
CVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [IC] Inscribed Circle | 15.875 |
| [S] Insert Thickness | 6.35 |
| [AN] Clearance Angle Major | 0° |
| [D1] Hole Diameter | 6.35 |
Turning Insert Negative Carbide Coated
| Weight | 0.004000 |
|---|---|
| Application | ISO Turning |
| Coating | CVD |
| Chipbreaker Size | Medium-Roughing |
| Grade Manufacturers Designation | CA115P |
| Primary Workpiece Material | Steel |
| Tool Type | Indexable Inserts |
| Tool Material | Regular Grain Carbide |
| Application Category | Undercutting, External Turning, External Facing |
| Insert Side Count | Negative |
| Coolant supply property | No |
| Number of Cutting Edges | 8 |
| Grooving | Parting off |
| Tool Style | RNMG |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | TiCN/Al2O3/TiN |
| Cutting Edge Style | Without Chipbreaker |
| Usage Classification | Continuous to Light Interruption |
| Insert Size | RN-1506 |
Currently Holders Selection Are Not Available Please Visit Back Later.
