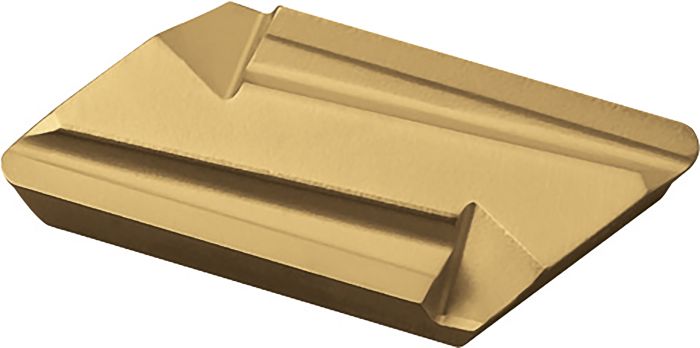

KNMX160405L-1 CA5525
SKU
TJR04000
Product Overview
KNMX
Steel
Regular Grain Carbide
CVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.50 |
| [IC] Inscribed Circle | 9.525 |
| [S] Insert Thickness | 4.76 |
| [AN] Clearance Angle Major | 0° |
Turning Insert Negative Carbide Coated
| Weight | 0.013000 |
|---|---|
| Application | ISO Turning |
| Coating | CVD |
| Chipbreaker Size | Medium |
| Grade Manufacturers Designation | CA5525 |
| Primary Workpiece Material | Steel |
| Tool Type | Indexable Inserts |
| Tool Material | Regular Grain Carbide |
| Application Category | Undercutting, External Turning, External Facing |
| Insert Side Count | Negative |
| Coolant supply property | No |
| Number of Cutting Edges | 2 |
| Grooving | Parting off |
| Tool Style | KNMX |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | TiCN/Al2O3/TiN |
| Usage Classification | Continuous to Light Interruption |
| Insert Size | KN-1604 |
| Chip Breaker Manufacturers Designation | L-1 |
Currently Holders Selection Are Not Available Please Visit Back Later.
