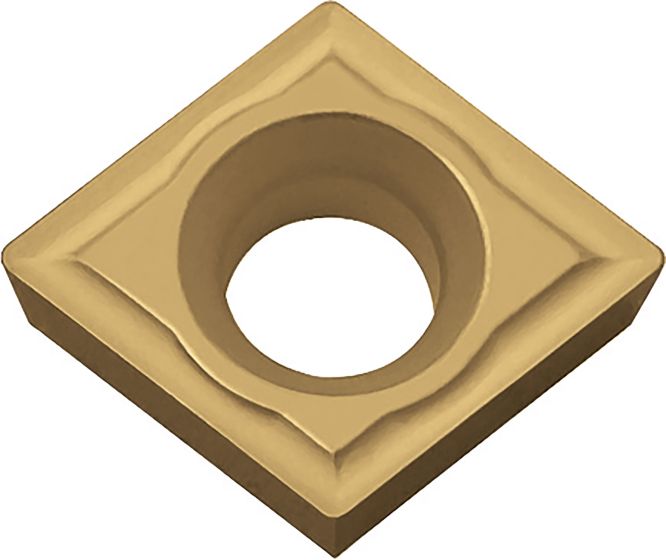

CPMH090304 CA6515
SKU
TJU01380
Product Overview
CPMH
Heat Resistant Materials
Stainless Steel
Regular Grain Carbide
CVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.40 |
| [IC] Inscribed Circle | 9.525 |
| [S] Insert Thickness | 3.18 |
| [AN] Clearance Angle Major | 11° |
| [D1] Hole Diameter | 4.50 |
Turning Insert Positive Carbide Coated
| Weight | 0.004000 |
|---|---|
| Application | ISO Turning |
| Coating | CVD |
| Chipbreaker Size | Medium |
| Grade Manufacturers Designation | CA6515 |
| Primary Workpiece Material | Stainless Steel, Heat Resistant Materials |
| Tool Type | Indexable Inserts |
| Tool Material | Regular Grain Carbide |
| Application Category | Boring, Internal Facing |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Number of Cutting Edges | 2 |
| Grooving | Parting off |
| Tool Style | CPMH |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | TiCN/Al2O3/TiN |
| Cutting Edge Style | Without Chipbreaker |
| Usage Classification | Continuous |
| Insert Size | CP-0903 |
