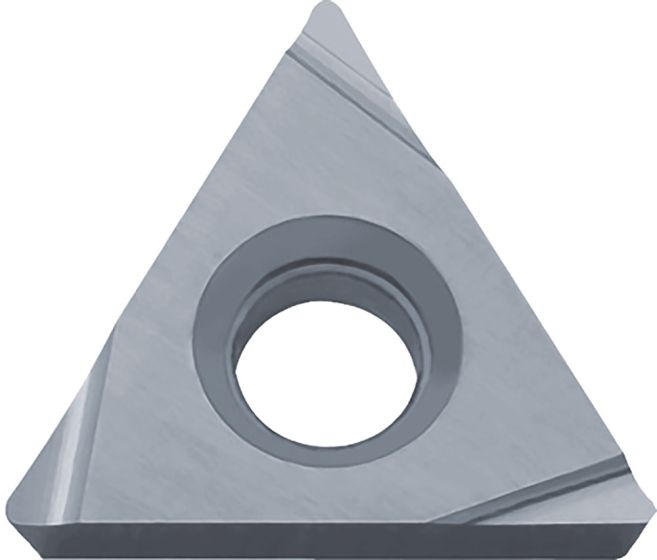

TPGH090204L KW10
SKU
TWE03722
Product Overview
TPGH
Non-Ferro
Cast Iron
Regular Grain Carbide
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.40 |
| [IC] Inscribed Circle | 5.56 |
| [S] Insert Thickness | 2.38 |
| [AN] Clearance Angle Major | 11° |
| [D1] Hole Diameter | 3.20 |
Turning Insert Positive Carbide
| Weight | 0.002000 |
|---|---|
| Application | ISO Turning |
| Coating | UNCOATED |
| Chipbreaker Size | Finishing |
| Grade Manufacturers Designation | KW10 |
| Primary Workpiece Material | Cast Iron, Non-Ferro |
| Tool Type | Indexable Inserts |
| Tool Material | Regular Grain Carbide |
| Application Category | Boring, Copying, External Turning, Internal Facing, Back Boring |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Number of Cutting Edges | 3 |
| Grooving | Parting off |
| Tool Style | TPGH |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | WC/Co |
| Cutting Edge Style | Sharp Edge |
| Usage Classification | Continuous to Light Interruption |
| Insert Size | TP-0902 |
| Chip Breaker Manufacturers Designation | L |
