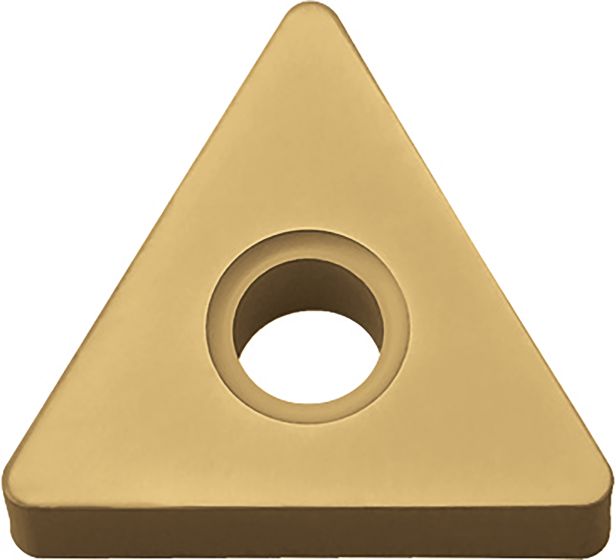

TNMA160404 PV7005
SKU
TJA06095
Product Overview
TNMA
Nodular Cast Iron
Cast Iron
Cermet
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.40 |
| [IC] Inscribed Circle | 9.525 |
| [S] Insert Thickness | 4.76 |
| [AN] Clearance Angle Major | 0° |
| [D1] Hole Diameter | 3.81 |
Turning Insert Negative Cermet Coated
| Weight | 0.004000 |
|---|---|
| Application | ISO Turning |
| Coating | PVD |
| Chipbreaker Size | Roughing |
| Grade Manufacturers Designation | PV7005 |
| Primary Workpiece Material | Cast Iron, Nodular Cast Iron |
| Tool Type | Indexable Inserts |
| Tool Material | Cermet |
| Application Category | Boring, Chamfering, Copying, External Turning, External Facing |
| Insert Side Count | Negative |
| Coolant supply property | No |
| Number of Cutting Edges | 6 |
| Grooving | Parting off |
| Tool Style | TNMA |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | TiC/TiN |
| Usage Classification | Continuous |
| Insert Size | TN-1604 |
