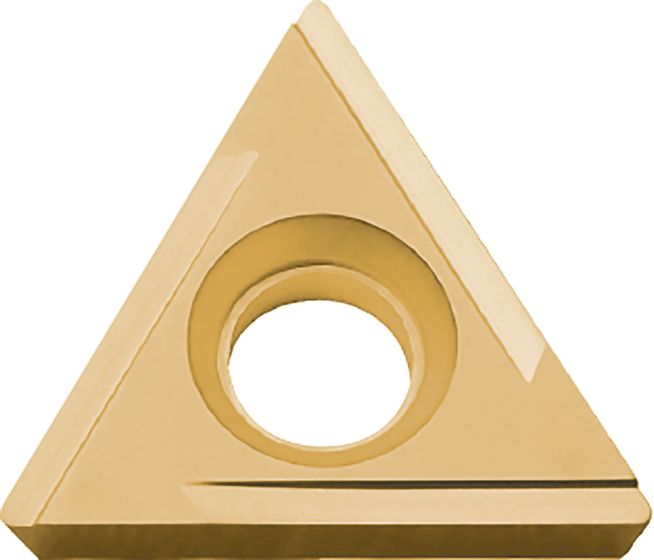

TPGH110302L-H PV710
SKU
TLF06900
Product Overview
TPGH
Steel
Cermet
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.20 |
| [IC] Inscribed Circle | 6.35 |
| [S] Insert Thickness | 3.18 |
| [AN] Clearance Angle Major | 11° |
| [D1] Hole Diameter | 3.30 |
Turning Insert Positive Cermet Coated
| Weight | 0.001000 |
|---|---|
| Application | ISO Turning |
| Coating | PVD |
| Chipbreaker Size | Medium |
| Grade Manufacturers Designation | PV710 |
| Primary Workpiece Material | Steel |
| Tool Type | Indexable Inserts |
| Tool Material | Cermet |
| Application Category | Boring, Copying, External Turning, Internal Facing, Back Boring |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Number of Cutting Edges | 3 |
| Grooving | Parting off |
| Tool Style | TPGH |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | TiCN |
| Usage Classification | Continuous |
| Insert Size | TP-1103 |
| Chip Breaker Manufacturers Designation | L-H |
