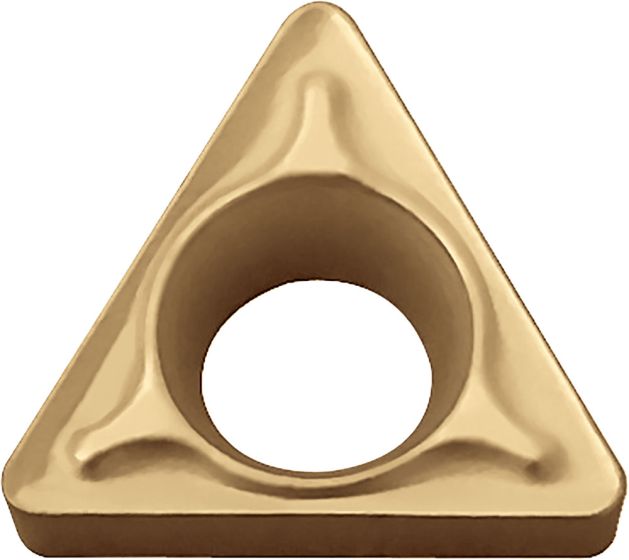

TBMT060102DP PV720
SKU
TLD05571
Product Overview
TBMT
Steel
Cermet
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.20 |
| [IC] Inscribed Circle | 3.97 |
| [S] Insert Thickness | 1.59 |
| [AN] Clearance Angle Major | 5° |
| [D1] Hole Diameter | 2.30 |
Turning Insert Positive Cermet Coated
| Weight | 0.001000 |
|---|---|
| Application | ISO Turning |
| Coating | PVD |
| Chipbreaker Size | Finishing |
| Grade Manufacturers Designation | PV720 |
| Primary Workpiece Material | Steel |
| Tool Type | Indexable Inserts |
| Tool Material | Cermet |
| Application Category | Boring, Copying, Internal Facing, Back Boring |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Number of Cutting Edges | 3 |
| Grooving | Parting off |
| Tool Style | TBMT |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | TiCN |
| Usage Classification | Continuous to Light Interruption |
| Insert Size | TB-0601 |
| Chip Breaker Manufacturers Designation | DP |
