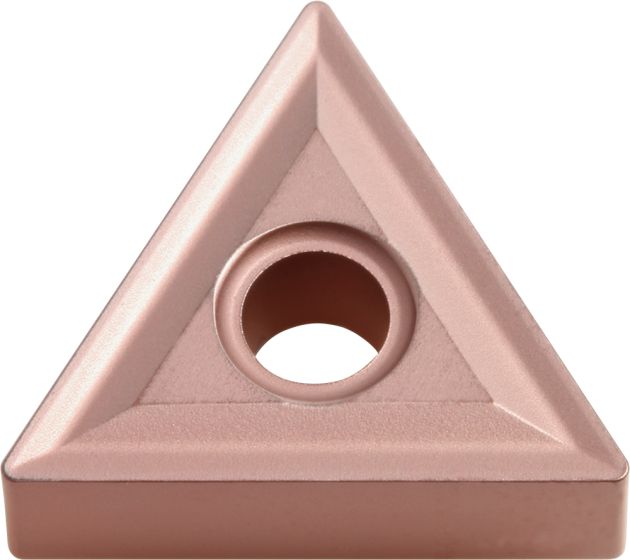

TNMG220408 CA310
SKU
TMC06401
Product Overview
TNMG
Nodular Cast Iron
Cast Iron
Regular Grain Carbide
CVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.80 |
| [IC] Inscribed Circle | 12.70 |
| [S] Insert Thickness | 4.76 |
| [AN] Clearance Angle Major | 0° |
| [D1] Hole Diameter | 5.16 |
Turning Insert Negative Carbide Coated
| Weight | 0.014000 |
|---|---|
| Application | ISO Turning |
| Coating | CVD |
| Chipbreaker Size | Roughing |
| Grade Manufacturers Designation | CA310 |
| Primary Workpiece Material | Cast Iron, Nodular Cast Iron |
| Tool Type | Indexable Inserts |
| Tool Material | Regular Grain Carbide |
| Application Category | Boring, Chamfering, Copying, External Turning, External Facing |
| Insert Side Count | Negative |
| Coolant supply property | No |
| Number of Cutting Edges | 6 |
| Grooving | Parting off |
| Tool Style | TNMG |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | TiCN/Al2O3/Ti base |
| Cutting Edge Style | Without Chipbreaker |
| Usage Classification | Continuous |
| Insert Size | TN-2204 |
