TCMT090202HQ TN610
SKU
TSS05806
Product Overview
TCMT
Steel
Cermet
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.20 |
| [IC] Inscribed Circle | 5.56 |
| [S] Insert Thickness | 2.38 |
| [AN] Clearance Angle Major | 7° |
| [D1] Hole Diameter | 2.50 |

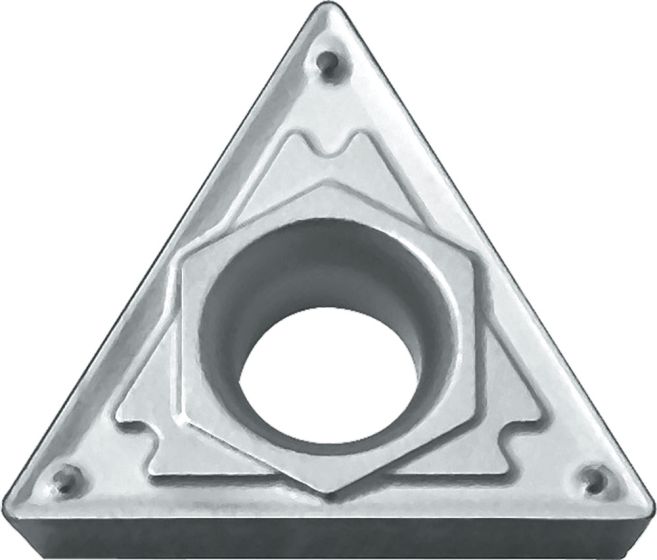

Turning Insert Positive Cermet
| Weight | 0.001000 |
|---|---|
| Application | ISO Turning |
| Coating | UNCOATED |
| Chipbreaker Size | Finishing-Medium |
| Grade Manufacturers Designation | TN610 |
| Primary Workpiece Material | Steel |
| Tool Type | Indexable Inserts |
| Tool Material | Cermet |
| Application Category | External Turning |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Number of Cutting Edges | 3 |
| Grooving | Parting off |
| Tool Style | TCMT |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | TiCN |
| Usage Classification | Continuous |
| Insert Size | TC-0902 |
| Chip Breaker Manufacturers Designation | HQ |
