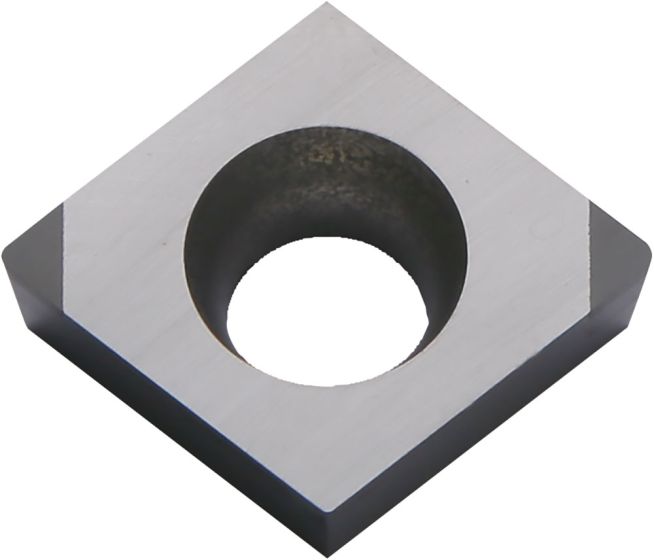

CCMW09T304MEF KBN570
SKU
TBT01211
Product Overview
CCMW
Cubic Boron Nitride
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.40 |
| [IC] Inscribed Circle | 9.525 |
| [S] Insert Thickness | 3.97 |
| [RE] Corner Radius | 0.4 |
| [AN] Clearance Angle Major | 7° |
| [LE] CBN/PCD Tip Length | 1.90 |
| [D1] Hole Diameter | 4.40 |
Turning Insert CBN
| Weight | 0.004000 |
|---|---|
| Application | ISO Turning |
| Coating | UNCOATED |
| Grade Manufacturers Designation | KBN570 |
| Tool Type | Indexable Inserts |
| Tool Material | Cubic Boron Nitride |
| Application Category | Boring, External Turning, Internal Facing, External Facing |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Cutting Range | Finishing-Medium |
| CBN/PCD Tip Length | 1.90 |
| Number of Cutting Edges | 2 |
| Grooving | Parting off |
| Tool Style | CCMW |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Cutting Edge Style | Multi-Edge / Sharp Edge |
| Usage Classification | Continuous to Light Interruption |
| Cutting Range | Finishing-Medium |
| Edge Preparation | Sharp Edge |
| Insert Size | CC-09T3 |
| Chip Breaker Manufacturers Designation | MEF |
