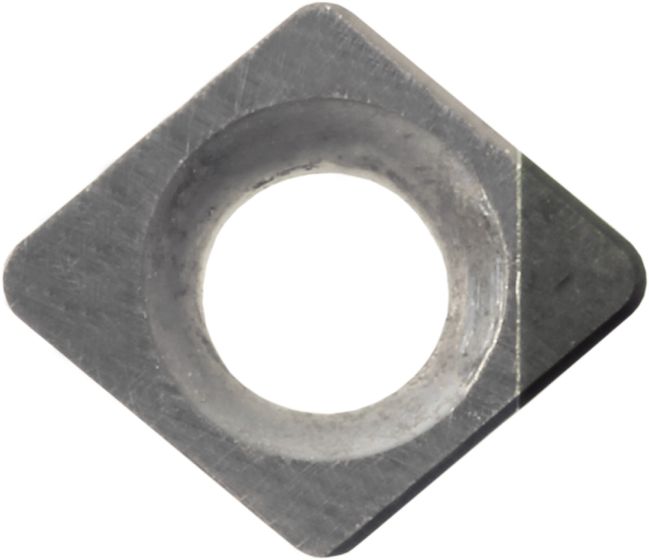

CCMW030102S01035SET KBN25M
SKU
TBZ01300
Product Overview
CCMW
Hardened Material
Cubic Boron Nitride
UNCOATED BRIGHT
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.20 |
| [IC] Inscribed Circle | 3.50 |
| [S] Insert Thickness | 1.40 |
| [RE] Corner Radius | 0.2 |
| [AN] Clearance Angle Major | 7° |
| [D1] Hole Diameter | 1.90 |
Turning Insert CBN
| Weight | 0.001000 |
|---|---|
| Application | ISO Turning |
| Coating | UNCOATED BRIGHT |
| Grade Manufacturers Designation | KBN25M |
| Primary Workpiece Material | Hardened Material |
| Tool Type | Indexable Inserts |
| Tool Material | Cubic Boron Nitride |
| Application Category | Boring, External Turning, Internal Facing, External Facing |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Cutting Range | Medium |
| Number of Cutting Edges | 1 |
| Grooving | Parting off |
| Tool Style | CCMW |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | MEGACOAT |
| Cutting Edge Style | Small Edge / Tough |
| Usage Classification | Continuous to Light Interruption |
| Cutting Range | Medium |
| Edge Preparation | Chamfered + R-honed |
| Insert Size | CC-0301 |
| Chip Breaker Manufacturers Designation | SET |
