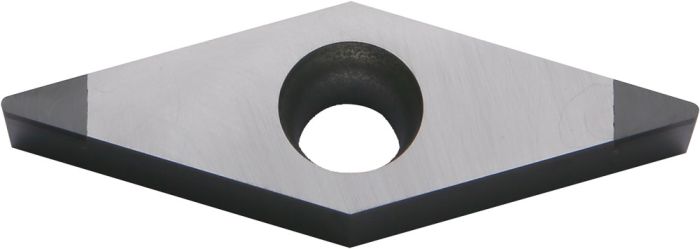

VBGW160408MEF KBN475
SKU
TFB05467
Product Overview
VBGW
Hardened Material
Cubic Boron Nitride
UNCOATED BRIGHT
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.80 |
| [IC] Inscribed Circle | 9.525 |
| [S] Insert Thickness | 4.76 |
| [RE] Corner Radius | 0.8 |
| [AN] Clearance Angle Major | 5° |
| [D1] Hole Diameter | 4.40 |
Turning Insert CBN
| Weight | 0.009000 |
|---|---|
| Application | ISO Turning |
| Coating | UNCOATED BRIGHT |
| Grade Manufacturers Designation | KBN475 |
| Primary Workpiece Material | Hardened Material |
| Tool Type | Indexable Inserts |
| Tool Material | Cubic Boron Nitride |
| Application Category | Undercutting, Boring, Copying, External Turning, Internal Facing, Back Boring, Profiling, External Facing |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Cutting Range | Finishing |
| Number of Cutting Edges | 2 |
| Grooving | Parting off |
| Tool Style | VBGW |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Cutting Edge Style | Multi-Edge / Sharp Edge |
| Usage Classification | Continuous |
| Cutting Range | Finishing |
| Edge Preparation | Sharp Edge |
| Insert Size | VB-1604 |
| Chip Breaker Manufacturers Designation | MEF |
