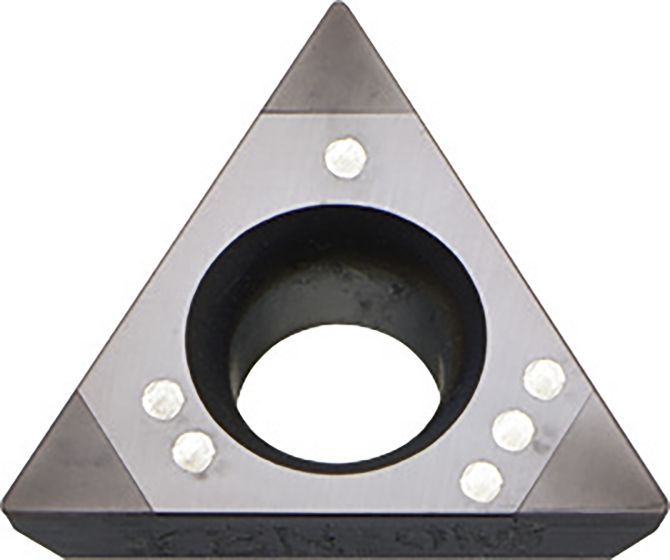

TPGB110304T00815ME KBN510
SKU
TBV04942
Product Overview
TPGB
Hardened Material
Cubic Boron Nitride
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.40 |
| [IC] Inscribed Circle | 6.35 |
| [S] Insert Thickness | 3.18 |
| [RE] Corner Radius | 0.4 |
| [AN] Clearance Angle Major | 11° |
| [LE] CBN/PCD Tip Length | 2.10 |
| [D1] Hole Diameter | 3.50 |
Turning Insert CBN
| Weight | 0.002000 |
|---|---|
| Application | ISO Turning |
| Coating | UNCOATED |
| Grade Manufacturers Designation | KBN510 |
| Primary Workpiece Material | Hardened Material |
| Tool Type | Indexable Inserts |
| Tool Material | Cubic Boron Nitride |
| Application Category | Copying, External Turning, Internal Facing, Back Boring, External Facing |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Cutting Range | Finishing |
| CBN/PCD Tip Length | 2.10 |
| Number of Cutting Edges | 3 |
| Grooving | Parting off |
| Tool Style | TPGB |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Cutting Edge Style | Multi-Edge |
| Usage Classification | Continuous |
| Cutting Range | Finishing |
| Edge Preparation | Chamfered |
| Insert Size | TP-1103 |
| Chip Breaker Manufacturers Designation | ME |
