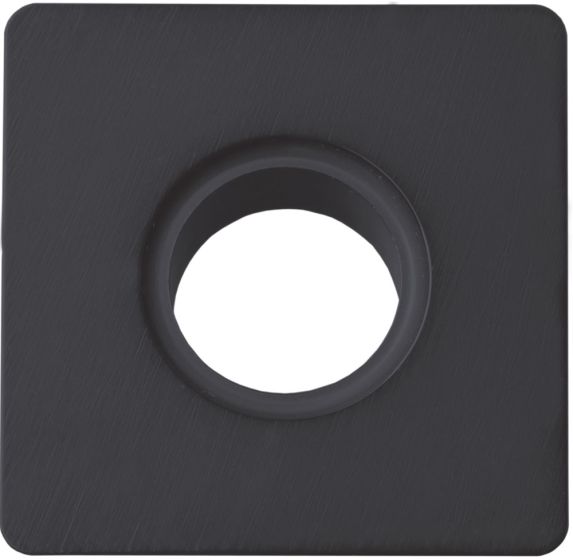

SNGA120408T02025 A65
SKU
TCR00002
Product Overview
SNGA
Hardened Material
Ceramic
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.80 |
| [IC] Inscribed Circle | 12.70 |
| [S] Insert Thickness | 4.76 |
| [AN] Clearance Angle Major | 0° |
| [D1] Hole Diameter | 5.16 |
Turning Insert Negative Ceramic
| Weight | 0.003000 |
|---|---|
| Application | ISO Turning |
| Coating | UNCOATED |
| Grade Manufacturers Designation | A65 |
| Primary Workpiece Material | Hardened Material |
| Tool Type | Indexable Inserts |
| Tool Material | Ceramic |
| Application Category | Boring, Chamfering, External Turning, External Facing |
| Insert Side Count | Negative |
| Coolant supply property | No |
| Cutting Range | Finishing-Medium |
| Number of Cutting Edges | 8 |
| Grooving | Parting off |
| Tool Style | SNGA |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | Al2O3/TiC |
| Usage Classification | Continuous |
| Cutting Range | Finishing-Medium |
| Edge Preparation | Chamfered |
| Insert Size | SN-1204 |
