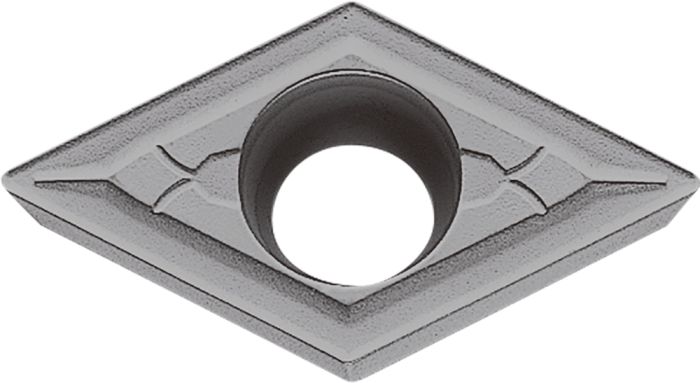

DCMT11T302GK TN620
SKU
TSR64036
Product Overview
DCMT
Steel
Cermet
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.20 |
| [IC] Inscribed Circle | 9.525 |
| [S] Insert Thickness | 3.97 |
| [AN] Clearance Angle Major | 7° |
| [D1] Hole Diameter | 4.40 |
Turning Insert Positive Cermet
| Weight | 0.022000 |
|---|---|
| Application | ISO Turning |
| Coating | UNCOATED |
| Chipbreaker Size | Finishing-Medium |
| Grade Manufacturers Designation | TN620 |
| Primary Workpiece Material | Steel |
| Tool Type | Indexable Inserts |
| Tool Material | Cermet |
| Application Category | Copying, External Turning, Back Boring |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Number of Cutting Edges | 2 |
| Grooving | Parting off |
| Tool Style | DCMT |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | TiCN |
| Usage Classification | Continuous to Light Interruption |
| Insert Size | DC-11T3 |
| Chip Breaker Manufacturers Designation | GK |
