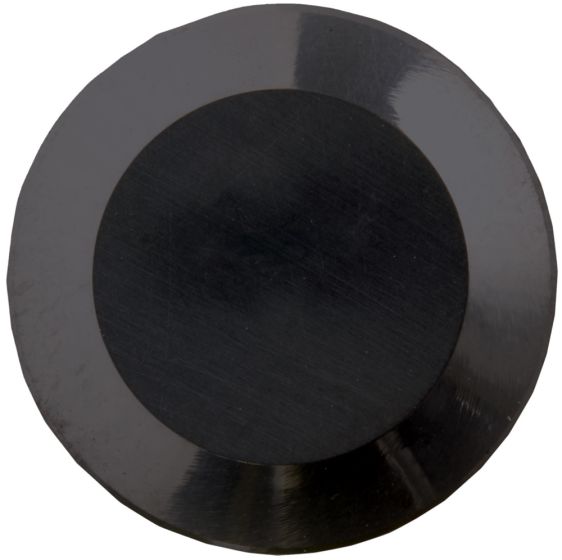

RCGX090700P20015 A65
SKU
TCR61110
Product Overview
RCGX
Hardened Material
Ceramic
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [IC] Inscribed Circle | 9.525 |
| [S] Insert Thickness | 8.00 |
| [AN] Clearance Angle Major | 7° |
Turning Insert Negative Ceramic
| Weight | 0.002000 |
|---|---|
| Application | ISO Turning |
| Coating | UNCOATED |
| Grade Manufacturers Designation | A65 |
| Primary Workpiece Material | Hardened Material |
| Tool Type | Indexable Inserts |
| Tool Material | Ceramic |
| Application Category | Undercutting, External Turning, Roll_machining, External Facing |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Tool Style | RCGX |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Coating / Composition | Al2O3/TiC |
| Usage Classification | Continuous |
| Cutting Range | Finishing-Medium |
| Edge Preparation | Chamfered |
| Insert Size | RC-0907 |
