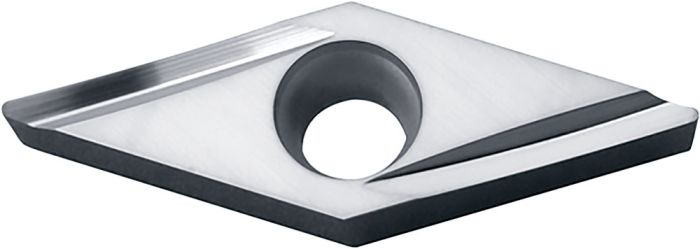

VBGT110308L-Y TN60
SKU
TSJ03304
Product Overview
VBGT
Steel
Cermet
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.80 |
| [IC] Inscribed Circle | 6.35 |
| [S] Insert Thickness | 3.18 |
| [AN] Clearance Angle Major | 5° |
| [D1] Hole Diameter | 2.80 |
Turning Insert Positive Cermet Coated
| Weight | 0.002000 |
|---|---|
| Application | ISO Turning |
| Coating | UNCOATED |
| Chipbreaker Size | Finishing-Medium |
| Grade Manufacturers Designation | TN60 |
| Primary Workpiece Material | Steel |
| Tool Type | Indexable Inserts |
| Tool Material | Cermet |
| Application Category | Undercutting, Copying, External Turning, Internal Facing, Back Boring, Profiling, External Facing |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Number of Cutting Edges | 2 |
| Grooving | Parting off |
| Tool Style | VBGT |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | TiCN/NbC |
| Usage Classification | Continuous |
| Insert Size | VB-1103 |
| Chip Breaker Manufacturers Designation | L-Y |
