A25R-DCLNL12-32
SKU
THC16015
Product Overview
DCLNL
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.8 |
| [DCON] Connection Diameter | 25.00 |
| [LH] Head Length | 42.00 |
| [WF] Cutting Edge Distance | 17.00 |
| [DMIN] Minimum Bore Diameter | 32.00 |
| [LF] Functional Length | 200.00 |
| [H] Shank Height | 23.00 |
Indexable Turning Holders
| Weight | 0.668000 |
|---|---|
| Application | ISO Turning |
| Tool Type | Indexable Holders |
| Application Category | Boring, Internal Facing |
| Insert Side Count | Negative |
| Coolant supply property | No |
| Rake Angle Axial (Degree) | -6 |
| Grooving | Parting off |
| Rake Angle Radial (Degree) | -11 |
| Insert Mounting Style Code | Double Clamp |
| Tool Entering Angle (Degree) | 95 |
| Brand | Kyocera |
| Families | Boring Bars |
| Tool Entering Angle (Degree) | 95 |
| Shank Height | 23.00 |

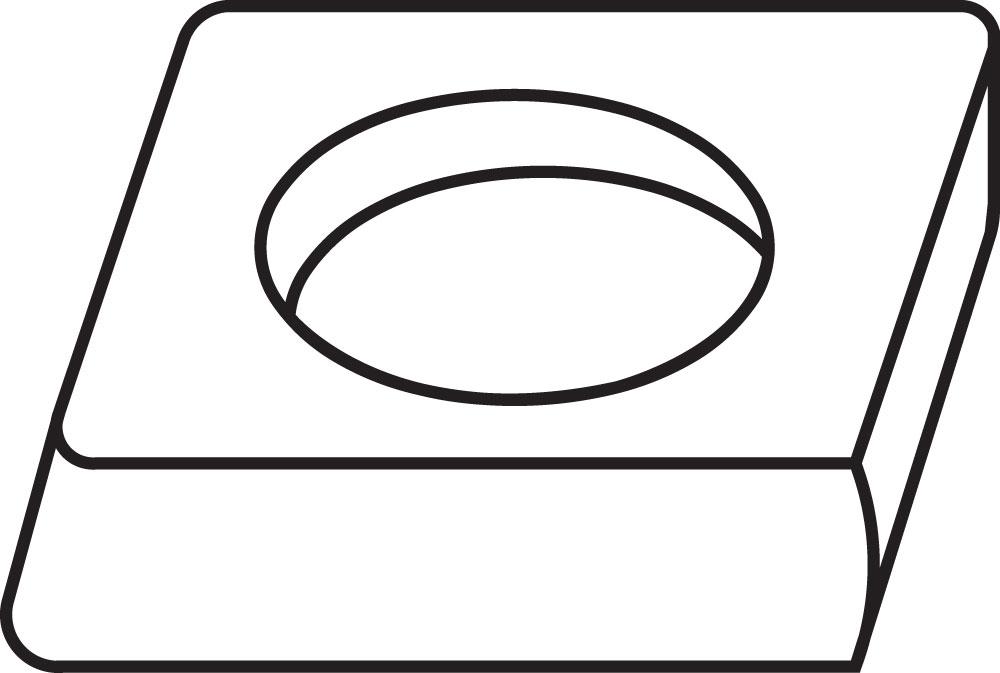

| Insert Size | CN-1204 |
| ISO Turning | Int. Neg. 95° Approach Boring - Facing |
