S40T-SVJBL16-50A
SKU
THC13447
Product Overview
SVJBL
Face Miling
Price Hidden
In stock
Login to see stock availability.

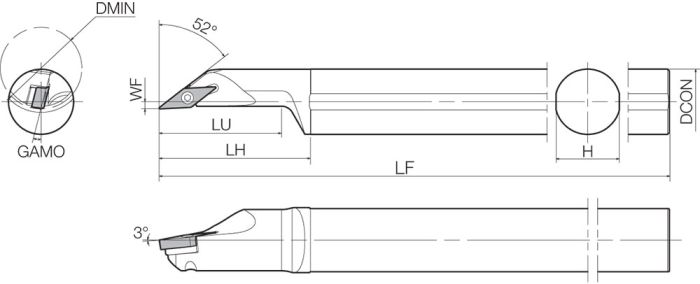

| Specifications | |
|---|---|
| [RE] Corner Radius | 0.4 |
| [DCON] Connection Diameter | 40.00 |
| [LH] Head Length | 91.00 |
| [WF] Cutting Edge Distance | 04.50 |
| [DMIN] Minimum Bore Diameter | 50.00 |
| [LF] Functional Length | 300.00 |
| [LU] Usable Length | 75.00 |
| [H] Shank Height | 37.00 |
Indexable Turning Holders
| Weight | 2.425000 |
|---|---|
| Application | ISO Turning |
| Tool Type | Indexable Holders |
| Application Category | Copying, Internal Facing, Internal Spherical Machining |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Rake Angle Axial (Degree) | -5 |
| Grooving | Parting off |
| Rake Angle Radial (Degree) | -7 |
| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 52 |
| Brand | Kyocera |
| Families | Boring Bars |
| Tool Entering Angle (Degree) | 52 |
| Usable Length | 75.00 |
| Shank Height | 37.00 |
| Insert Size | VB-1604 |
| ISO Turning | Int. Pos. 93° Approach Copying - Facing - Internal Spherical Machining |
