S32S-PDUNR11-40
SKU
THC07990
Product Overview
PDUNR
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.4 |
| [DCON] Connection Diameter | 32.00 |
| [LH] Head Length | 45.00 |
| [WF] Cutting Edge Distance | 22.00 |
| [DMIN] Minimum Bore Diameter | 40.00 |
| [WF2] Cutting Edge Distance Secondary | 8.50 |
| [LF] Functional Length | 250.00 |
| [H] Shank Height | 31.00 |
Indexable Turning Holders
| Weight | 1.467000 |
|---|---|
| Application | ISO Turning |
| Tool Type | Indexable Holders |
| Cutting Edge Distance Secondary | 8.50 |
| Application Category | Copying |
| Insert Side Count | Negative |
| Coolant supply property | No |
| Rake Angle Axial (Degree) | -6 |
| Grooving | Parting off |
| Rake Angle Radial (Degree) | -12 |

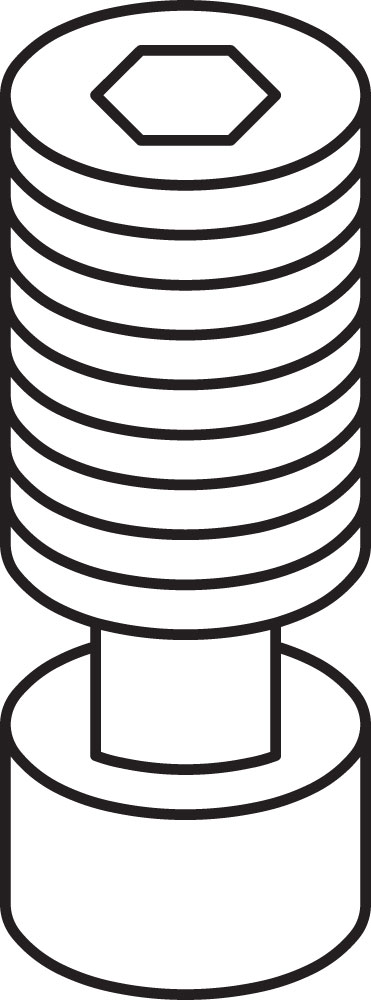

| Insert Mounting Style Code | Lever Lock / Lock Pin |
| Tool Entering Angle (Degree) | 93 |
| Brand | Kyocera |
| Families | Boring Bars |
| Tool Entering Angle (Degree) | 93 |
| Shank Height | 31.00 |
| Insert Size | DN-1104 |
| ISO Turning | Int. Neg. 93° Approach Boring - Copying |
Currently Holders Selection Are Not Available Please Visit Back Later.
