CSKNR2525M-12
SKU
THC02180
Product Overview
CSKN
Face Miling
Price Hidden
In stock
Login to see stock availability.

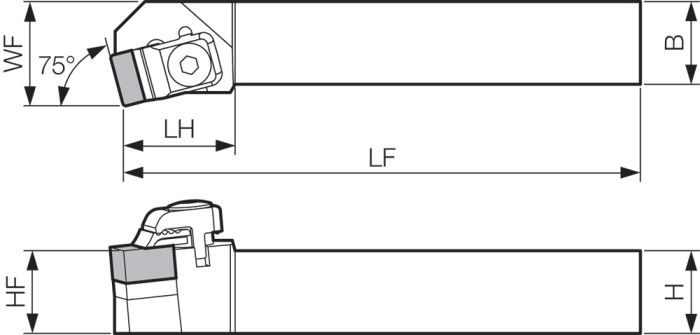

| Specifications | |
|---|---|
| [B] Shank Width | 25.00 |
| [HF] Cutting Edge Height | 25.00 |
| [LH] Head Length | 27.00 |
| [WF] Cutting Edge Distance | 32.00 |
| [LF] Functional Length | 150.00 |
| [H] Shank Height | 25.00 |
Indexable Turning Holders
| Application | ISO Turning |
|---|---|
| Tool Type | Indexable Holders |
| Application Category | External Facing |
| Insert Side Count | Negative |
| Coolant supply property | No |
| Rake Angle Axial (Degree) | -6 |
| Grooving | Parting off |
| Rake Angle Radial (Degree) | -4 |

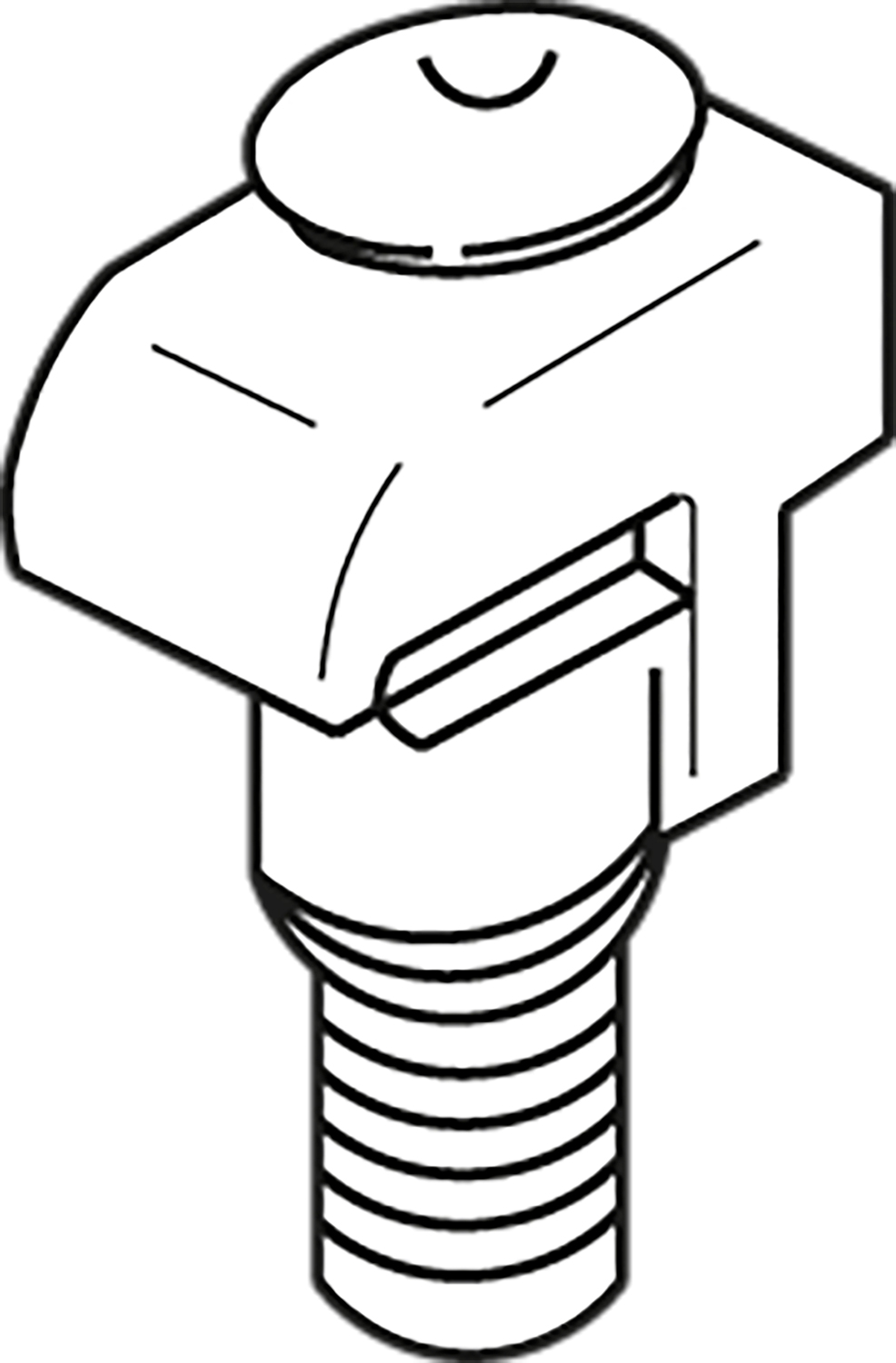

| Insert Mounting Style Code | Top Clamp |
| Tool Entering Angle (Degree) | 75 |
| Ilclination Angle (Degree) | -4 |
| Brand | Kyocera |
| Tool Entering Angle (Degree) | 75 |
| Shank Height | 25.00 |
| Insert Size | SN-1207 |
| ISO Turning | Ext. Neg. 75° Approach Facing |
Currently Holders Selection Are Not Available Please Visit Back Later.
