DA1650M-FTP PR1535
SKU
TLC10215
Product Overview
DA_FTP
Stainless Steel
Steel
Regular Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [DC] Cutting Diameter | 16.50 |
| [PL] Point Length | 0.70 |
| [D2] Cutting Diameter Minimum | 4.60 |
| [DC] Cutting Diameter | 16.50 |

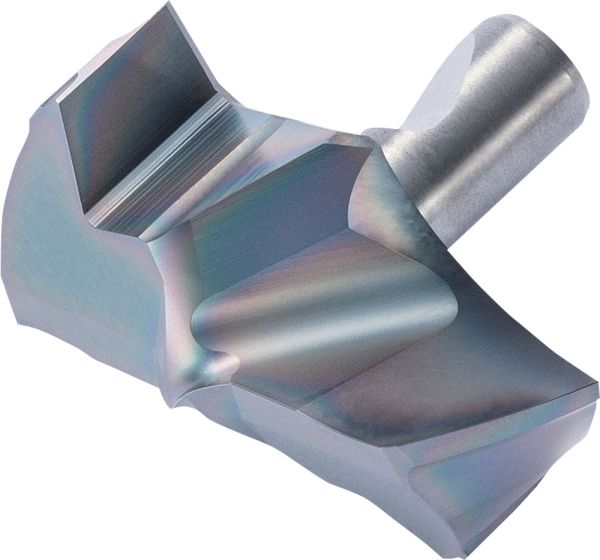

Magic Drill Insert Carbide Coated
| Weight | 0.027000 |
|---|---|
| Application | Drilling |
| Coating | PVD |
| Grade Manufacturers Designation | PR1535 |
| Primary Workpiece Material | Steel, Stainless Steel |
| Tool Type | Replaceable Drill Tip |
| Connection size desc | DA1650M-... |
| Point Length | 0.70 |
| Insert Tip Angle | 0 |
| Tool Style | DA |
| Coolant supply property | No |
| Cutting Diameter Minimum | 4.60 |
| Tool Material | Regular Grain Carbide |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Coating / Composition | MEGACOAT NANO |
| Insert Size | 16.50 |
| Chip Breaker Manufacturers Designation | FTP |
