| Specifications | |
|---|---|
| [RE] Corner Radius | 0.4 |
| [DCON] Connection Diameter | 25.00 |
| [LH] Head Length | 38.00 |
| [WF] Cutting Edge Distance | 18.00 |
| [DMIN] Minimum Bore Diameter | 31.00 |
| [WF2] Cutting Edge Distance Secondary | 5.00 |
| [LF] Functional Length | 300.00 |
| [H] Shank Height | 24.00 |
Indexable Turning Holders
| Weight | 1.844000 |
|---|---|
| Application | ISO Turning |
| Tool Type | Indexable Holders |
| Cutting Edge Distance Secondary | 5.00 |
| Application Category | Undercutting, Copying |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Rake Angle Axial (Degree) | -5 |
| Grooving | Parting off |
| Rake Angle Radial (Degree) | -13 |

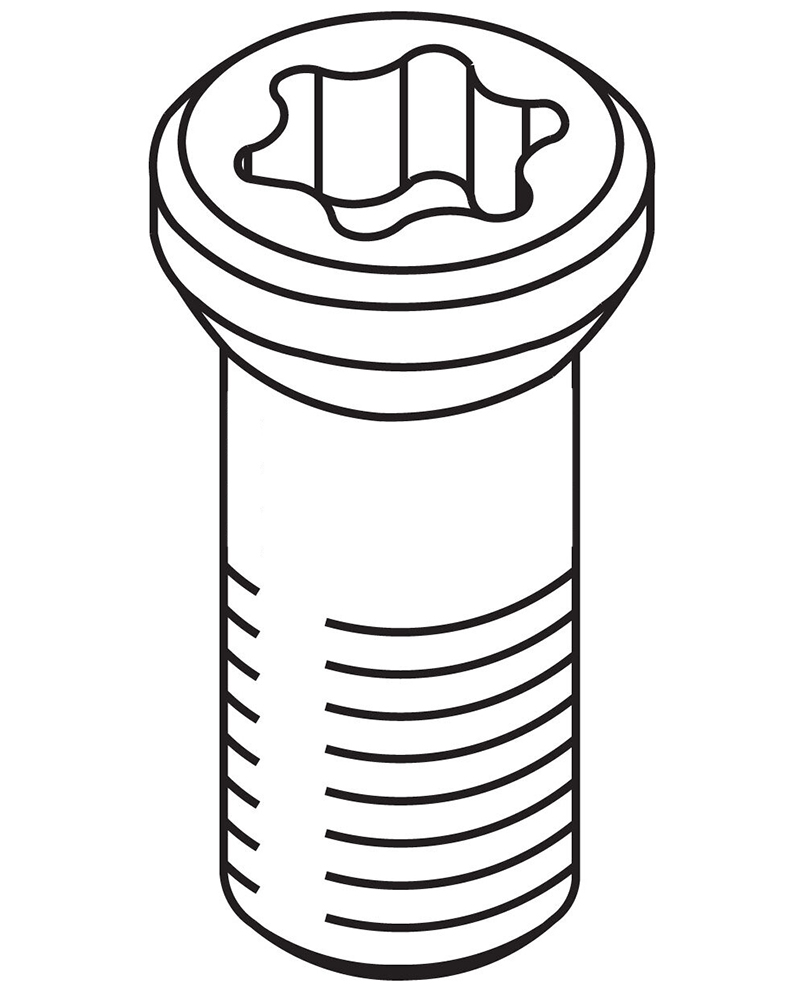

| Insert Mounting Style Code | Screw |
| Tool Entering Angle (Degree) | 117_5 |
| Brand | Kyocera |
| Families | Boring Bars |
| Tool Entering Angle (Degree) | 117.5 |
| Shank Height | 24.00 |

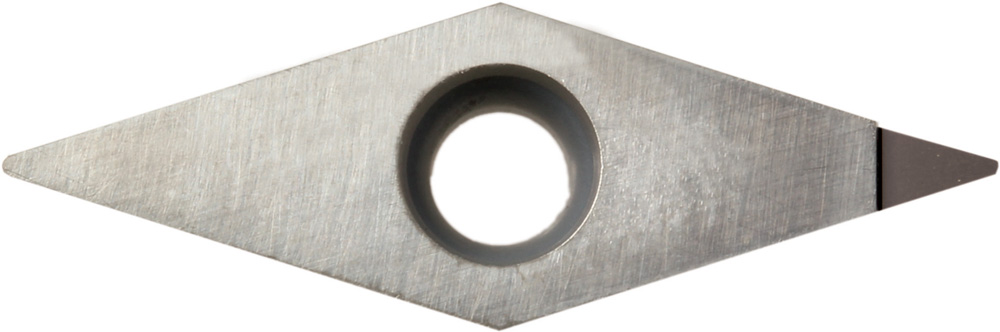

| Insert Size | VB-1604 |
| ISO Turning | Int. Pos. 117.5° Approach Copying - Udercutting |
