| Specifications | |
|---|---|
| [DCON] Connection Diameter | 16.00 |
| [LH] Head Length | 16.00 |
| [LPR] Overall length | [No.1] 20.50; [No.2] 16.50; [No.3] 12.50; [No.4] 8.50 |
| [DCB] Connection Bore Diameter | 4.00 |
| [DCCB2] Connection Counterbore Diameter 2 | 6.00 |
| [HDD] Head Diameter | 13.00 |
| [LF] Functional Length | 100.00 |
| [H] Shank Height | 15.00 |

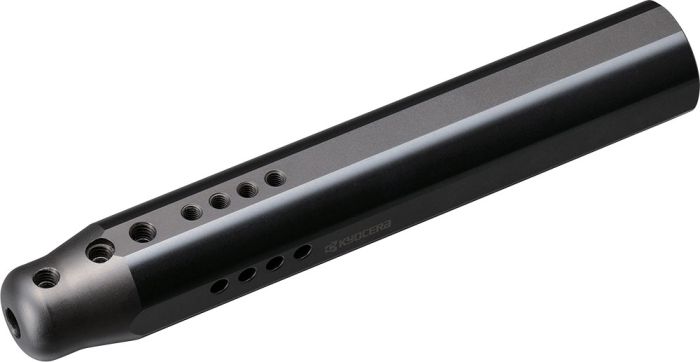

Micro Boring Bar Sleeves
| Weight | 0.132000 |
|---|---|
| Application | ISO Turning |
| Tool Type | Indexable Holders |
| Overall length | [No.1] 20.50; [No.2] 16.50; [No.3] 12.50; [No.4] 8.50 |
| Application Category | Micro Boring, Micro Internal Grooving, Micro Back Boring, Micro Internal Face Grooving, Micro Internal Profiling, Micro Internal Threading |
| Coolant supply property | No |
| Connection Bore Diameter | 4.00 |
| Grooving | Parting off |
| L3 | 24.00 |
| Head Diameter | 13.00 |
| Brand | Kyocera |
| Families | Micro Boring Bar Sleeves |
| Shank Height | 15.00 |
