| Specifications | |
|---|---|
| [DCON] Connection Diameter | 19.05 |
| [LH] Head Length | 18.00 |
| [LPR] Overall length | [No.1] 23.00 (EZ Bar PLUS = 14.00); [No.2] 18.50 (EZ Bar PLUS = 9.50); [No.3] 14.00; [No.4] 9.50 |
| [DCB] Connection Bore Diameter | 4.50 |
| [DCCB2] Connection Counterbore Diameter 2 | 6.00 |
| [HDD] Head Diameter | 16.00 |
| [LF] Functional Length | 120.00 |
| [H] Shank Height | 18.00 |

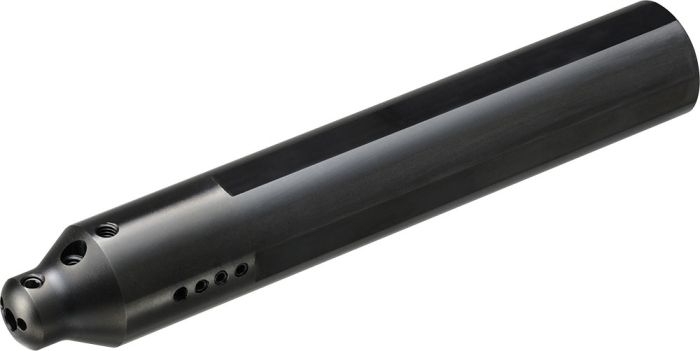

Micro Boring Bar Sleeves
| Weight | 0.217000 |
|---|---|
| Application | ISO Turning |
| Tool Type | Indexable Holders |
| Overall length | [No.1] 23.00 ; [No.3] 14.00; [No.4] 9.50 |
| Application Category | Micro Boring, Micro Internal Grooving, Micro Back Boring, Micro Internal Face Grooving, Micro Internal Profiling, Micro Internal Threading |
| Coolant supply property | No |
| Connection Bore Diameter | 4.50 |
| Grooving | Parting off |
| L3 | 23.00 |
| Head Diameter | 16.00 |
| Brand | Kyocera |
| Families | Micro Boring Bar Sleeves |
| Shank Height | 18.00 |
