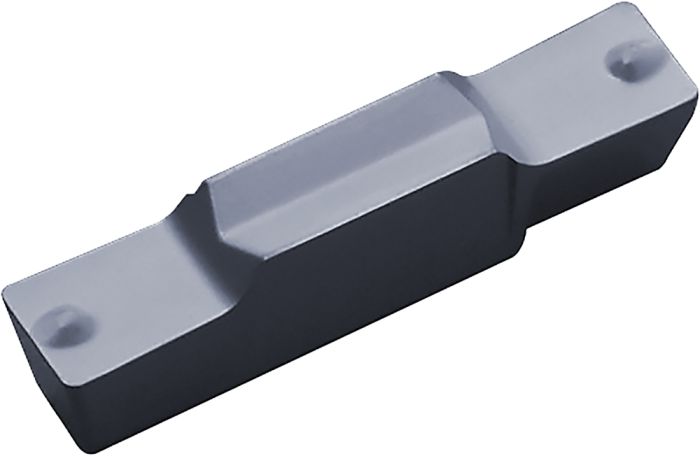

FGGR3020-02 PR930
SKU
TKT10000
Product Overview
FGGR
Steel
Micro Grain Carbide
PVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.20 |
| [S] Insert Thickness | 4.30 |
| [CDX] Max Depth of Cut | 25.00 |
| [INSL] Insert length | 20.00 |
| [CW] Cutting Width | 3.00 |
Grooving Insert Carbide
| Weight | 0.005000 |
|---|---|
| Application | Grooving |
| Coating | PVD |
| Grade Manufacturers Designation | PR930 |
| Primary Workpiece Material | Steel |
| Tool Type | Indexable Inserts |
| Max Depth of Cut | 25.00 |
| Tool Material | Micro Grain Carbide |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Tool Style | FGGR |
| Cutting Width Tolerance | -0_02/+0_02 |
| Cutting Width Minimum | 3.00 |
| Cutting Width Maximum | 3.00 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Coating / Composition | TiCN |
| Cutting Edge Style | Face Grooving / Chip Control Oriented / Precision Class |
| Usage Classification | Continuous to Light Interruption |
| Insert length | 20.00 |
| Cutting Width | 3.00 |
| Insert Size | FGGR-3020 |
