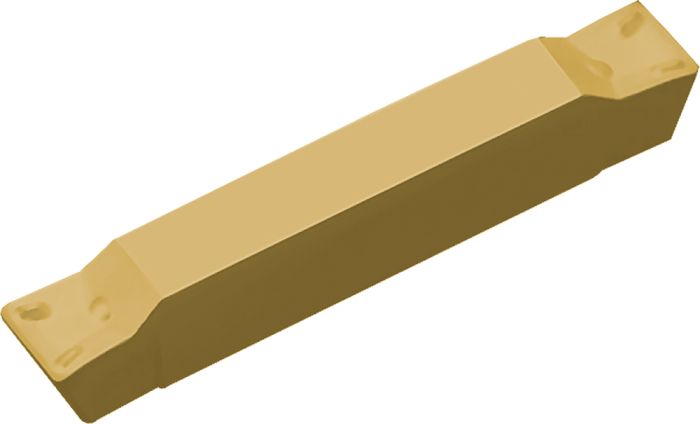

GA40 CR9025
SKU
TKW01110
Product Overview
GA
Stainless Steel
Steel
Regular Grain Carbide
CVD
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0_25 |
| [S] Insert Thickness | 5.00 |
| [INSL] Insert length | 25.00 |
| [CW] Cutting Width | 4.00 |
Insert for External Deep Grooving
| Weight | 0.004000 |
|---|---|
| Application | Grooving |
| Coating | CVD |
| Grade Manufacturers Designation | CR9025 |
| Primary Workpiece Material | Steel, Stainless Steel |
| Tool Type | Indexable Inserts |
| Tool Material | Regular Grain Carbide |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Tool Style | GA |
| Cutting Width Tolerance | 0/+0_05 |
| Cutting Width Minimum | 4.00 |
| Cutting Width Maximum | 4.00 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Coating / Composition | TiCN+TiN |
| Usage Classification | Continuous to Light Interruption |
| Insert length | 25.00 |
| Cutting Width | 4.00 |
| Insert Size | GA40 |
