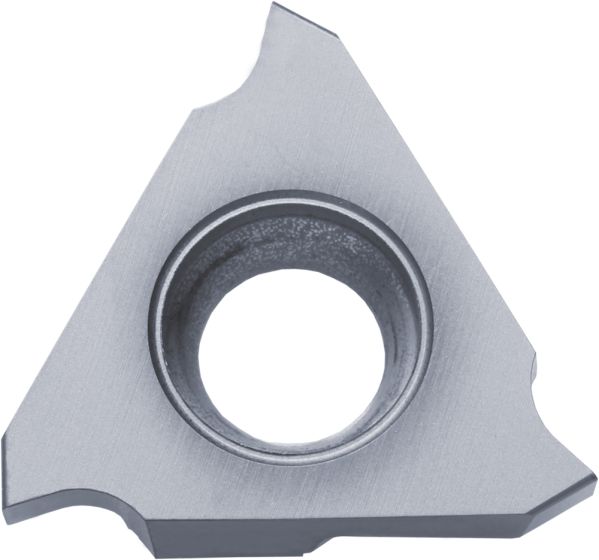

GBA32L250-020 TN90
SKU
TSO09038
Product Overview
GBA
Stainless Steel
Steel
Cermet
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.20 |
| [IC] Inscribed Circle | 9.525 |
| [S] Insert Thickness | 3.18 |
| [CDX] Max Depth of Cut | 02.50 |
| [CW] Cutting Width | 2.50 |
| [D1] Hole Diameter | 4.40 |
Insert for External Grooving
| Weight | 0.002000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | TN90 |
| Primary Workpiece Material | Steel, Stainless Steel |
| Tool Type | Indexable Inserts |
| Max Depth of Cut | 02.50 |
| Tool Material | Cermet |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 3 |
| Tool Style | GBA |
| Cutting Width Tolerance | -0_025/+0_025 |
| Cutting Width Minimum | 2.50 |
| Cutting Width Maximum | 2.50 |
| Insert Mounting Style Code | Screw or Clamp |
| Brand | Kyocera |
| Coating / Composition | TiCN+NbC |
| Cutting Edge Style | 3-edge |
| Usage Classification | Continuous |
| Cutting Width | 2.50 |
| Insert Size | GBA-32L |
