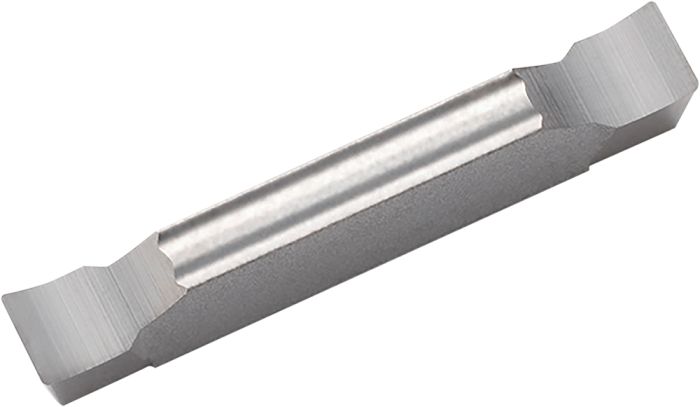

GDFG6020N-040GS GW15
SKU
TWG40025
Product Overview
GDFG
Heat Resistant Materials
Non-Ferro
Nodular Cast Iron
Cast Iron
Regular Grain Carbide
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.40 |
| [S] Insert Thickness | 4.50 |
| [CW MAX] Edge Tolerance | +0.2 |
| [INSL] Insert length | 20.00 |
| [CW] Cutting Width | 6.00 |
Grooving Insert Carbide
| Weight | 0.007000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | GW15 |
| Primary Workpiece Material | Cast Iron, Nodular Cast Iron, Non-Ferro, Heat Resistant Materials |
| Tool Type | Indexable Inserts |
| Tool Material | Regular Grain Carbide |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Tool Style | GDFG |
| Cutting Width Tolerance | -0.02/+0.02 |
| Cutting Width Minimum | 6.00 |
| Cutting Width Maximum | 6.00 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Coating / Composition | WC/Co |
| Cutting Edge Style | Low Cutting Force / 2-edge |
| Usage Classification | Continuous to Light Interruption |
| Insert length | 20.00 |
| Cutting Width | 6.00 |
| Insert Size | GDFG-6020 |
| Chip Breaker Manufacturers Designation | GS |
