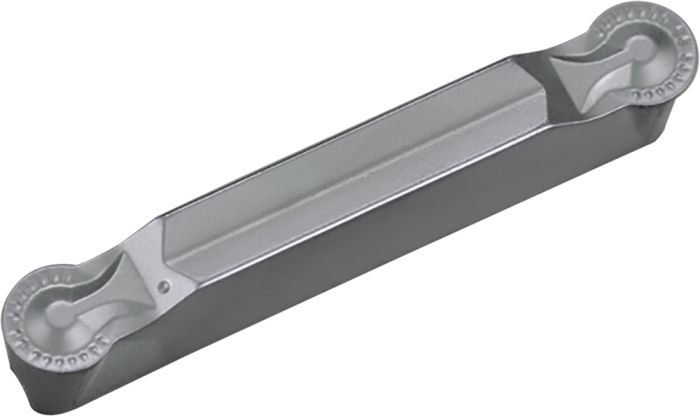

GDM3015N-150R-CM TN620
SKU
TSR10960
Product Overview
GDM
Stainless Steel
Steel
Cermet
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 1.50 |
| [S] Insert Thickness | 4.60 |
| [CDX] Max Depth of Cut | 08.00 |
| [CW MAX] Edge Tolerance | +0.03 |
| [INSL] Insert length | 16.30 |
| [CW] Cutting Width | 3.00 |
Grooving Insert Carbide
| Weight | 0.002000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | TN620 |
| Primary Workpiece Material | Steel, Stainless Steel |
| Tool Type | Indexable Inserts |
| Max Depth of Cut | 08.00 |
| Tool Material | Cermet |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Tool Style | GDM |
| Cutting Width Tolerance | -0.03/+0.03 |
| Cutting Width Minimum | 3.00 |
| Cutting Width Maximum | 3.00 |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Coating / Composition | TiCN |
| Cutting Edge Style | Full Radius / 2-edge |
| Usage Classification | Continuous |
| Insert length | 16.30 |
| Cutting Width | 3.00 |
| Insert Size | GDM-3015 |
| Chip Breaker Manufacturers Designation | CM |
