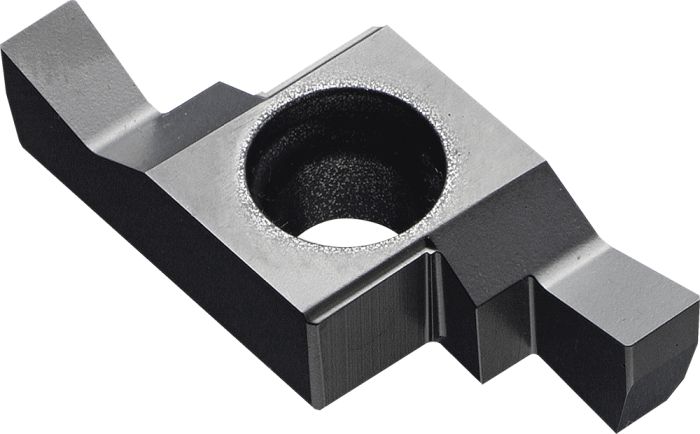

GEL300-020E GW15
SKU
TWG17267
Product Overview
GE
Heat Resistant Materials
Non-Ferro
Regular Grain Carbide
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.20 |
| [S] Insert Thickness | 5.55 |
| [CDX] Max Depth of Cut | 04.50 |
| [INSL] Insert length | 21.66 |
| [CW] Cutting Width | 3.00 |
| [W1] Insert Width | 9.54 |
| [D1] Hole Diameter | 4.60 |
Insert for Internal Grooving
| Weight | 0.008000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | GW15 |
| Primary Workpiece Material | Non-Ferro, Heat Resistant Materials |
| Tool Type | Indexable Inserts |
| Max Depth of Cut | 04.50 |
| Tool Material | Regular Grain Carbide |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Tool Style | GE |
| Cutting Width Tolerance | -0_03/+0_03 |
| Cutting Width Minimum | 3.00 |
| Cutting Width Maximum | 3.00 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Coating / Composition | WC+Co |
| Cutting Edge Style | 2-edge |
| Usage Classification | Continuous to Light Interruption |
| Insert length | 21.66 |
| Cutting Width | 3.00 |
| Insert Size | GEL-E |
| Insert Width | 9.54 |
| Chip Breaker Manufacturers Designation | E |
