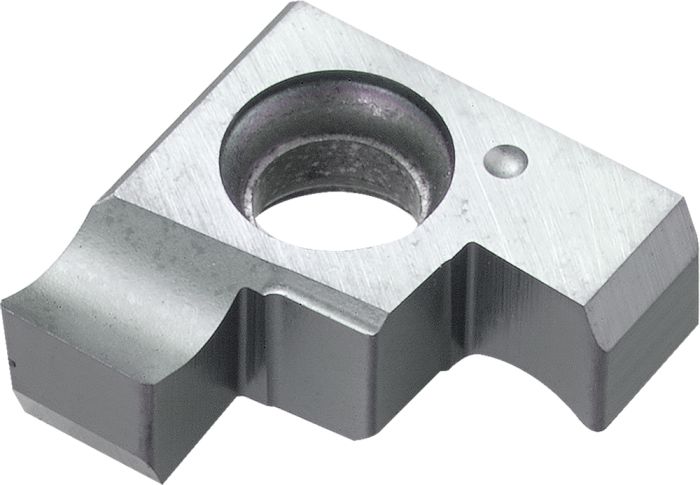

GER100-005A KW10
SKU
TWE16700
Product Overview
GE
Non-Ferro
Regular Grain Carbide
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.05 |
| [S] Insert Thickness | 2.58 |
| [CDX] Max Depth of Cut | 01.50 |
| [INSL] Insert length | 6.50 |
| [CW] Cutting Width | 1.00 |
| [W1] Insert Width | 6.69 |
| [D1] Hole Diameter | 2.50 |
Insert for Internal Grooving
| Weight | 0.003000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | KW10 |
| Primary Workpiece Material | Non-Ferro |
| Tool Type | Indexable Inserts |
| Max Depth of Cut | 01.50 |
| Tool Material | Regular Grain Carbide |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Tool Style | GE |
| Cutting Width Tolerance | -0_025/+0_025 |
| Cutting Width Minimum | 1.00 |
| Cutting Width Maximum | 1.00 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Coating / Composition | WC+Co |
| Cutting Edge Style | 2-edge |
| Usage Classification | Continuous to Light Interruption |
| Insert length | 6.50 |
| Cutting Width | 1.00 |
| Insert Size | GER-A |
| Insert Width | 6.69 |
| Chip Breaker Manufacturers Designation | A |
