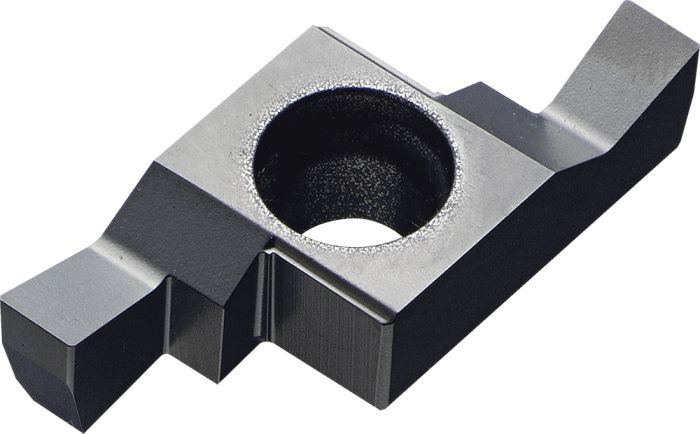

GER225-010E TN6020
SKU
TSQ17236
Product Overview
GE
Stainless Steel
Steel
Cermet
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.10 |
| [S] Insert Thickness | 5.55 |
| [CDX] Max Depth of Cut | 03.20 |
| [INSL] Insert length | 21.66 |
| [CW] Cutting Width | 2_25 |
| [W1] Insert Width | 9.54 |
| [D1] Hole Diameter | 4.60 |
Insert for Internal Grooving
| Weight | 0.004000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | TN6020 |
| Primary Workpiece Material | Steel, Stainless Steel |
| Tool Type | Indexable Inserts |
| Max Depth of Cut | 03.20 |
| Tool Material | Cermet |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Number of Cutting Edges | 2 |
| Tool Style | GE |
| Cutting Width Tolerance | -0_03/+0_03 |
| Cutting Width Minimum | 2.25 |
| Cutting Width Maximum | 2.25 |
| Insert Mounting Style Code | Screw |
| Brand | Kyocera |
| Coating / Composition | TiCN |
| Cutting Edge Style | 2-edge |
| Usage Classification | Continuous |
| Insert length | 21.66 |
| Cutting Width | 2_25 |
| Insert Size | GER-E |
| Insert Width | 9.54 |
| Chip Breaker Manufacturers Designation | E |
