GH7020-05 A65
SKU
TCR01350
Product Overview
GH
Hardened Material
Ceramic
UNCOATED
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [RE] Corner Radius | 0.50 |
| [S] Insert Thickness | 7.5 |
| [INSL] Insert length | 20 |
| [CW] Cutting Width | 7 |

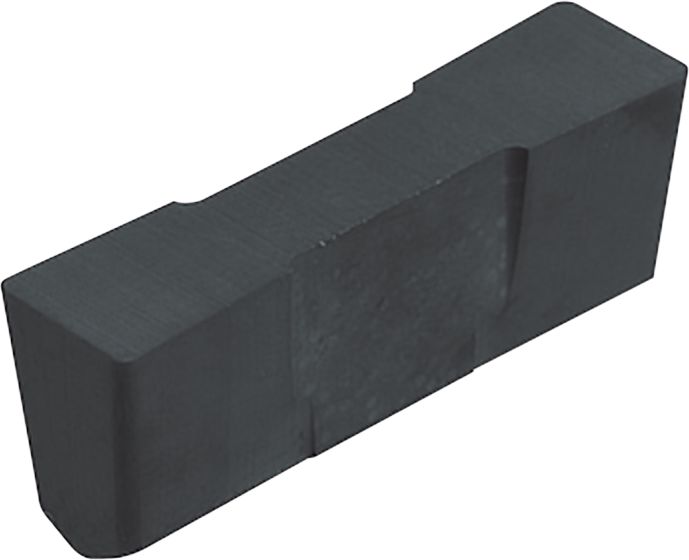

Grooving Insert Ceramic
| Weight | 0.004000 |
|---|---|
| Application | Grooving |
| Coating | UNCOATED |
| Grade Manufacturers Designation | A65 |
| Primary Workpiece Material | Hardened Material |
| Tool Type | Indexable Inserts |
| Tool Material | Ceramic |
| Application Category | External Grooving, External Deep Grooving, Internal Large Diameter Deep Grooving |
| Insert Side Count | Positive |
| Coolant supply property | No |
| Grooving | Parting off |
| Tool Style | GH |
| Insert Mounting Style Code | Clamp |
| Brand | Kyocera |
| Coating / Composition | Al2O3/TiC |
| Usage Classification | Continuous |
| Insert length | 20 |
| Cutting Range | Finishing |
| Edge Preparation | Chamfered |
| Cutting Width | 7 |
| Insert Size | GH-70 |
