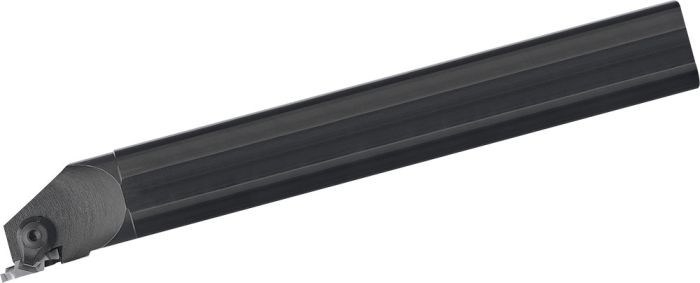

GIFVR3532B-351B
SKU
THC04714
Product Overview
GIFV
Face Miling
Price Hidden
In stock
Login to see stock availability.
| Specifications | |
|---|---|
| [CDX] Max Depth of Cut | 04.60 |
| [CW MAX] Edge Tolerance | 3.50 |
| [DCON] Connection Diameter | 32.00 |
| [LH] Head Length | 30.00 |
| [WF] Cutting Edge Distance | 16.00 |
| [DMIN] Minimum Bore Diameter | 35.00 |
| [DAXN_min] Minimum Face Groove Diameter | 35.00 |
| [DAXX_max] Maximum Face Groove Diameter | 50.00 |
| [LF] Functional Length | 250.00 |
| [H] Shank Height | 30.00 |
| [CW] Cutting Width | 2.50 - 3.50 |
Face Grooving Toolholder
| Weight | 1.356000 |
|---|---|
| Application | Grooving |
| Tool Type | Indexable Holders |
| Max Depth of Cut | 04.60 |
| Coolant supply property | No |
| Minimum Face Groove Diameter | 35.00 |
| Maximum Face Groove Diameter | 50.00 |
| Grooving | Externally Axial Grooving |
| Tool Style | GIFV |
| Cutting Width Minimum | 2.50 |
| Cutting Width Maximum | 3.50 |
| Insert Mounting Style Code | Top Clamp |
| Brand | Kyocera |
| Shank Height | 30.00 |
| Cutting Width | 2.50 - 3.50 |
